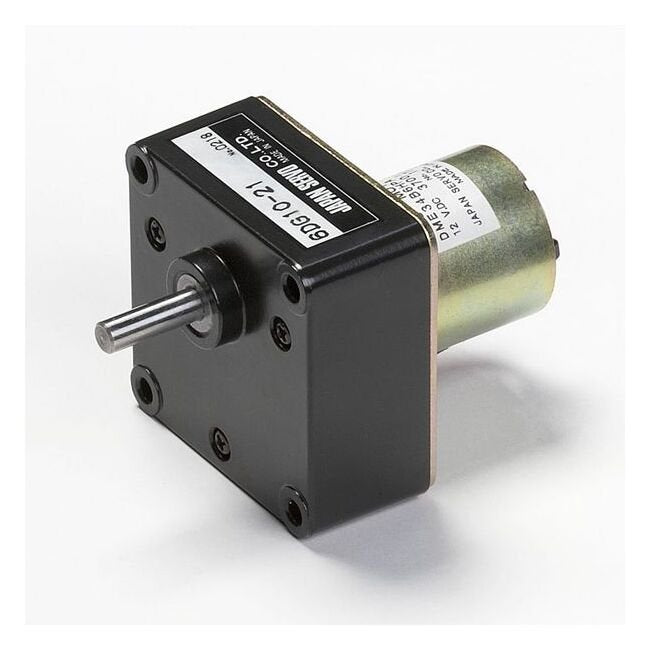

High-Power DME34 Series Motors with Gearbox 60G
High-Power DME34 Series Motors with Gearbox 60G
SKU:PER-4de8e2
Compact, high-power DME34 Series Motors with Gearbox 60G for reliable performance in demanding applications. Featuring optimized brush design and a range of gear head options.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Power DME34 Series Motors with Gearbox 60G
$129.99
Quantity: 1
Claim Your Seller Account
High-Power DME34 Series Motors with Gearbox 60G
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME34 Series Motors with Gearbox 60G offer a compact size and high power ranging from 0.7 W to 26 W. With a wide variety of lineups and gear heads available, including gear heads ranging from 32 Dia to 80 Sq, these motors are designed for longevity and robust performance. Featuring optimized brush design for a long-life operation of over 1 million cycles, high output with excellent heat dissipation and resistance, high radial load capacity, low noise, and enhanced insulation. Additionally, these motors come with a large selection of gear heads and reduction ratios to meet diverse needs, magnetic revolution sensor, and noise filter options.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications Frame Size
61 x 61 mm
Specifications Gear Ratio
15
Specifications Model Code
SB
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
1.3 W
Specifications Rated Speed
220 r/min
Specifications Rated Torque
6.67 oz·in | 0.048 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
