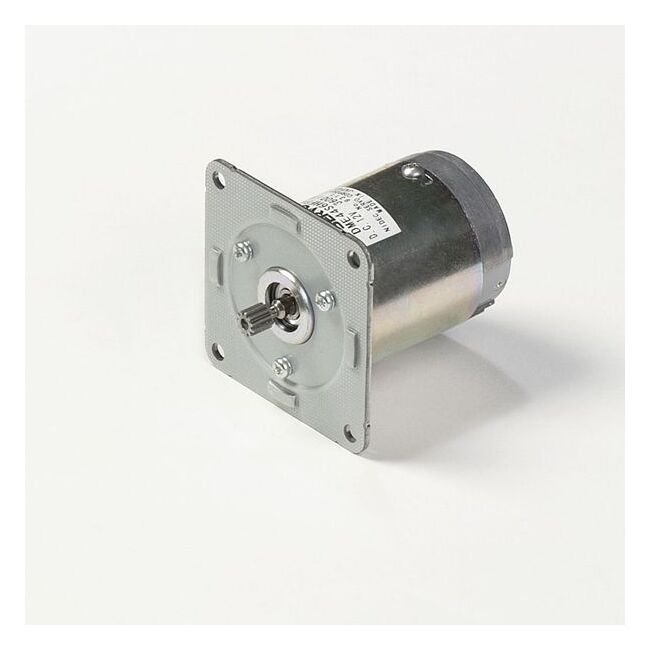

High-Power DME44 Series Motor with Gearbox 6DGF
High-Power DME44 Series Motor with Gearbox 6DGF
SKU:PER-c661c8
High-power DME44 Series Motor with Gearbox 6DGF - Compact, efficient, and durable. Ideal for reliable high-output performance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High-Power DME44 Series Motor with Gearbox 6DGF
$189.99
Quantity: 1
Claim Your Seller Account
High-Power DME44 Series Motor with Gearbox 6DGF
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience optimal performance with the high-power DME44 Series Motor with Gearbox 6DGF. This compact motor offers a power range of 0.7 W to 26 W, ensuring efficiency and durability. With a continuous operating life of 2000 hours and the ability to withstand over 1 million cycles, this motor is designed for longevity. The robust construction, large diameter output shaft, and ball bearings provide high radial load capacity. Additionally, the motor features low noise operation, increased insulation, and a variety of gear heads and reduction ratios to meet diverse needs. Ideal for applications requiring reliability and high output.
Product Specifications
Additional Information 0
DME44S6HF.jpg | DME44-With-Gearbox-6DGF.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
1310 mA | 1.31 A
Specifications Frame Size
61 x 61 mm | 2.402 x 2.402 in
Specifications Gear Ratio
15
Specifications Model Code
SA
Specifications Note
Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
Motor with Gearbox 6DGF
Specifications Rated Output
9.2 W
Specifications Rated Speed
240 r/min
Specifications Rated Torque
37.5 oz·in | 0.27 N·m
Specifications Rated Voltage
12 V
Specifications Series
DME44
