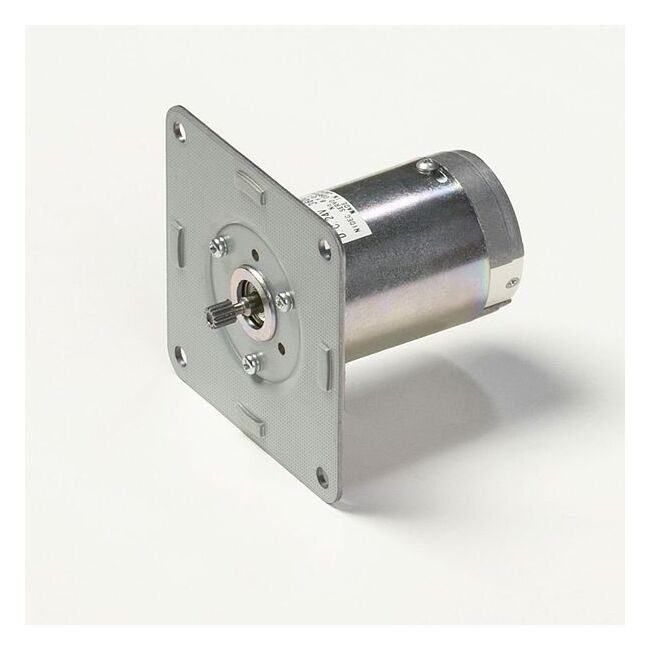

High-Power DME44 Series Motor with Gearbox 8DG
High-Power DME44 Series Motor with Gearbox 8DG
SKU:PER-0f6fb2
Compact, high-power DME44 Series Motors deliver reliability & efficiency for demanding applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
High-Power DME44 Series Motor with Gearbox 8DG
$349.99
Quantity: 1
Claim Your Seller Account
High-Power DME44 Series Motor with Gearbox 8DG
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DME44 Series Motors with Gearbox 8DG offer exceptional performance and versatility for a wide range of applications. With a compact size and high power output ranging from 0.7 W to 26 W, these motors are designed for efficiency and reliability. Featuring a variety of gear heads, robust construction, and optimized brush design, they provide long operational life and high output. With a continuous operating life of 2000 hours, high heat dissipation, and resistance, these motors ensure durability and consistent performance. Moreover, they come with a large selection of gear heads, reduction ratios, magnetic revolution sensor, and noise filter options, catering to diverse needs in institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
DME44B8HPB.jpg | DME44-With-Gearbox-8DG.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Bolt
M5 x 2.362 in | M5 x 60 mm
Specifications Current Rating
940 mA | 0.94 A
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
300
Specifications L1
4.374 in | 111.1 mm
Specifications L2
1.654 in | 42 mm
Specifications Model Code
BB
Specifications Note
When ordering, please write the motor model and gearbox model number separately. as in the following example: ME44B6HPB (Pinion Shaft Motor) 8DG_ (Gearbox)
Specifications Product Type
Motor with Gearbox 8DG
Specifications Rated Output
14.8 W
Specifications Rated Speed
13.1 r/min
Specifications Rated Torque
555.49 oz·in | 3.9 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME44
Specifications Weight
1.0 kg | 2.2 lb
