High Power Fine Pole Magnetic Chuck
High Power Fine Pole Magnetic Chuck
SKU:HIG-554f7b
Achieve precision workholding with the High Power Fine Pole Magnetic Chuck. Ideal for thin and large workpieces.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
High Power Fine Pole Magnetic Chuck
$599.99
Quantity: 1
Claim Your Seller Account
High Power Fine Pole Magnetic Chuck
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

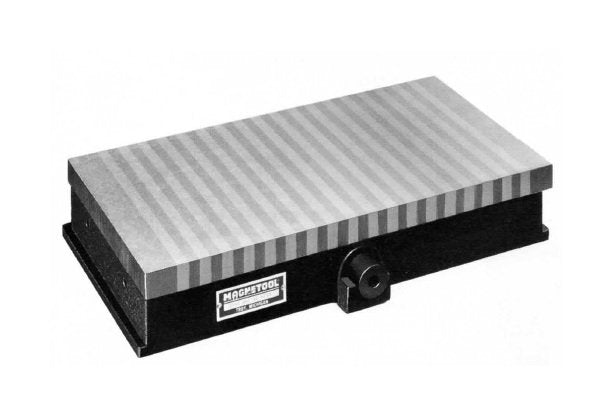

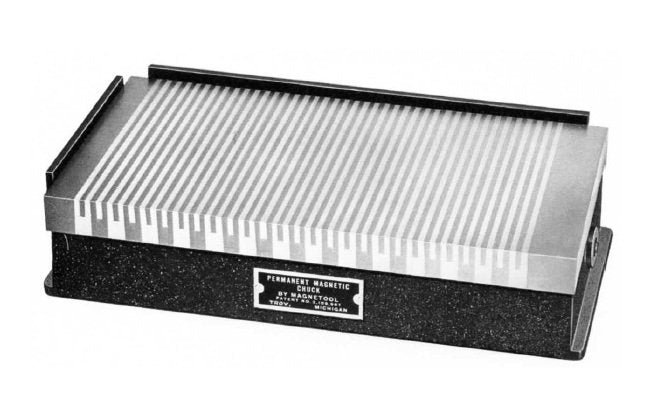

The High Power Fine Pole Magnetic Chuck is a precision-engineered workholding solution designed for both thin and large workpieces. Constructed with 1/8 in. magnetic steel and non-magnetic stainless steel, the top plate is furnace-brazed to ensure a solid, one-piece unit. This chuck offers a work area of 24 x 8 3/16 in. with excellent holding strength for various machining operations. With a weight of 106 lb and dimensions of 24" L x 8" W x 2 7/8" H, it provides versatility and durability for industrial applications. Whether drilling, machining between poles, or securing large workpieces, this magnetic chuck delivers the power and stability needed for precision work.
Product Specifications
Specifications Base Length
24 5/8 in
Specifications Base Width
8 1/8 in
Specifications Height
2 7/8 in
Specifications Length
24 in
Specifications Pole Materials
1/8 in. Magnetic Steel | 1/8 in. Non-Magnetic Stainless Steel.
Specifications Weight
106 lb
Specifications Width
8 in
Specifications Work Area L X W
24 x 8 3/16 in
