High Power Fine Pole Permanent Magnetic Chuck - 10x6 inches
High Power Fine Pole Permanent Magnetic Chuck - 10x6 inches
SKU:HIG-ff6428
High Power Fine Pole Permanent Magnetic Chuck with 10x6 in. work area, ideal for secure industrial machining.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
High Power Fine Pole Permanent Magnetic Chuck - 10x6 inches
$249.99
Quantity: 1
Claim Your Seller Account
High Power Fine Pole Permanent Magnetic Chuck - 10x6 inches
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

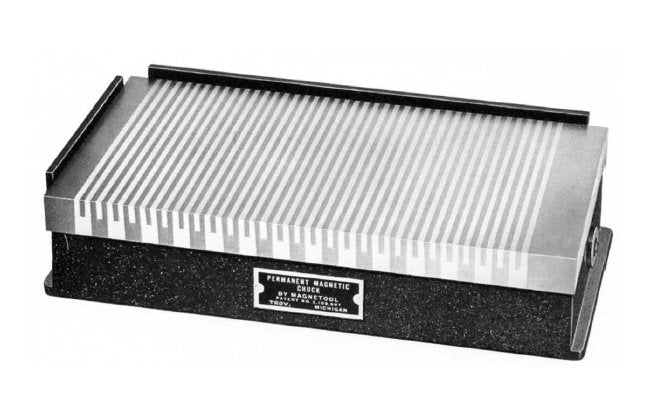

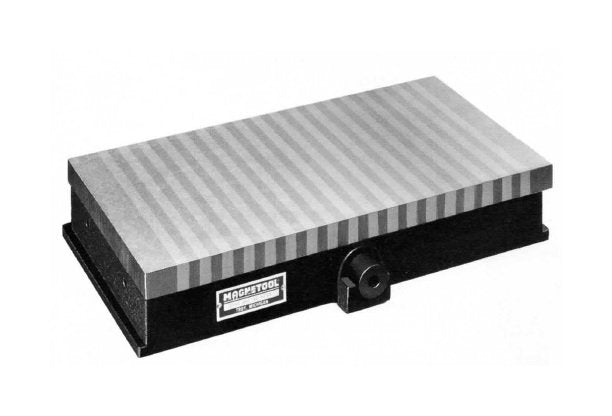

The High Power Fine Pole Permanent Magnetic Chuck features poles of 1/8 in. magnetic steel and 1/8 in. non-magnetic stainless steel, providing exceptional holding power for both thin and large workpieces. Its top plate is furnace brazed, creating a sturdy, one-piece unit that can be drilled or machined to precise specifications. With a work area of 10 1/2 x 6 3/16 inches and a weight of 32 lb, this magnetic chuck ensures secure and reliable workpiece stability, making it an ideal choice for industrial machining applications.
Product Specifications
Specifications Base Length
10 1/4 in
Specifications Base Width
6 in
Specifications Height
2 5/8 in
Specifications Length
10 in
Specifications Pole Materials
1/8 in. Magnetic Steel | 1/8 in. Non-Magnetic Stainless Steel.
Specifications Weight
32 lb
Specifications Width
6 in
Specifications Work Area L X W
10 1/2 x 6 3/16 in
