High Power Fine Pole Permanent Magnetic Chuck - 14x6 in.
High Power Fine Pole Permanent Magnetic Chuck - 14x6 in.
SKU:HIG-96d423
Enhance precision and efficiency with our High Power Fine Pole Permanent Magnetic Chuck - perfect for thin to large workpieces.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
High Power Fine Pole Permanent Magnetic Chuck - 14x6 in.
$349.99
Quantity: 1
Claim Your Seller Account
High Power Fine Pole Permanent Magnetic Chuck - 14x6 in.
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

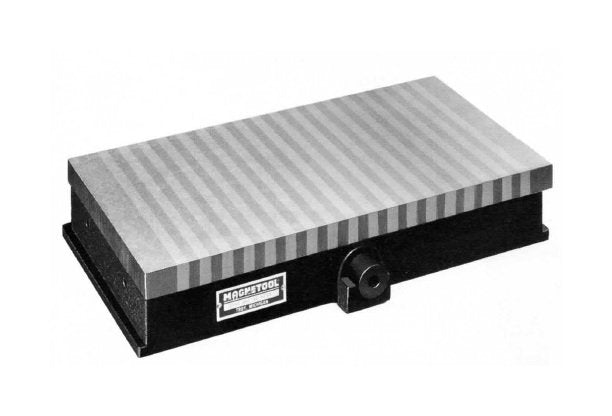

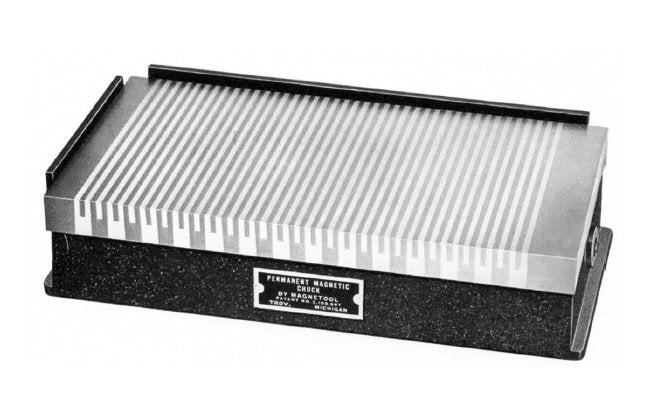

The High Power Fine Pole Permanent Magnetic Chuck features a sturdy construction with poles made of 1/8 in. magnetic steel and 1/8 in. non-magnetic stainless steel. The top plate is meticulously furnace brazed to create a durable one-piece unit. This chuck offers exceptional holding power for both thin and large workpieces, allowing for precision machining. Its magnetic circuit ensures secure positioning and enhanced efficiency, making it ideal for industrial applications.
Product Specifications
Specifications Base Length
14 in
Specifications Base Width
6 in
Specifications Height
2 5/8 in
Specifications Length
14 in
Specifications Pole Materials
1/8 in. Magnetic Steel | 1/8 in. Non-Magnetic Stainless Steel.
Specifications Weight
48 lb
Specifications Width
6 in
Specifications Work Area L X W
14 x 6 3/16 in
