High Power Fine Pole Permanent Magnetic Chuck - Industrial Grade
High Power Fine Pole Permanent Magnetic Chuck - Industrial Grade
SKU:HIG-7692c4
High Power Magnetic Chuck for precise work-holding in machining applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
High Power Fine Pole Permanent Magnetic Chuck - Industrial Grade
$289.99
Quantity: 1
Claim Your Seller Account
High Power Fine Pole Permanent Magnetic Chuck - Industrial Grade
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

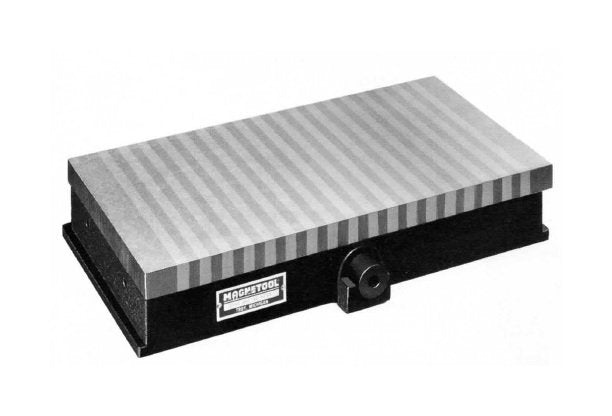

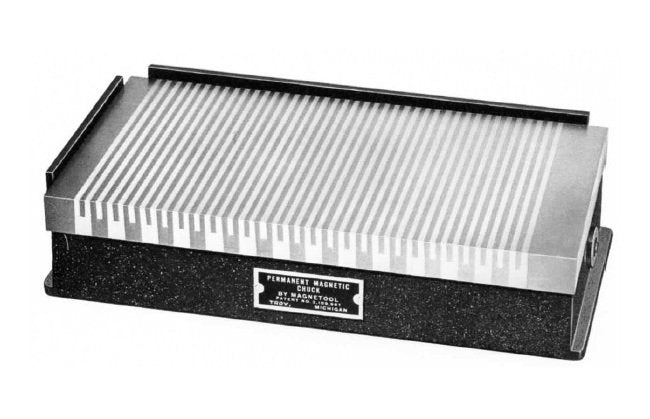

The High Power Fine Pole Permanent Magnetic Chuck is engineered with precision, featuring poles of 1/8 in. magnetic steel and 1/8 in. non-magnetic stainless steel for exceptional durability. The top plate, furnace brazed into a solid, one-piece unit, allows for versatile machining options. With a magnetic circuit designed to provide superior holding power, this chuck ensures secure gripping of both thin and large workpieces. Measuring 15 x 8 3/16 inches and weighing 64 lbs, this industrial-grade magnetic chuck is a reliable solution for diverse machining applications.
Product Specifications
Specifications Base Length
15 5/8 in
Specifications Base Width
8 in
Specifications Height
2 5/8 in
Specifications Length
15 in
Specifications Pole Materials
1/8 in. Magnetic Steel | 1/8 in. Non-Magnetic Stainless Steel.
Specifications Weight
64 lb
Specifications Width
8 in
Specifications Work Area L X W
15 x 8 3/16 in
