High-Power HT54 Series Ceramic Capacitors

Name: High-Power HT54 Series Ceramic Capacitors
Brand: High Energy Corp.
SKU: CER-ce2f86
Price: 49.99 USD
Availability: OutOfStock

SKU:CER-ce2f86

High-voltage HT54 Series Ceramic Capacitors with 5 kVA Max Power and Class I NP0/N750 TC dielectrics. Ideal for high-demand applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

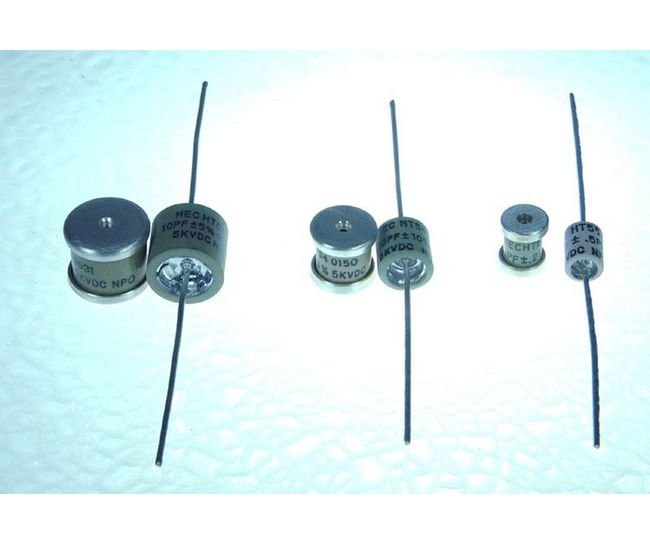

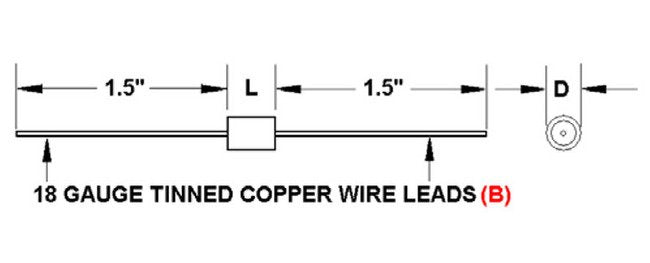

The HT54 Series Ceramic Capacitors offer a reliable solution for high-voltage applications with a robust 5 kVDC Working Voltage and 5 kVA Max Power capacity. Featuring a capacitance range of 1 to 40 pF, these capacitors come with a choice of Threaded Terminals or Wire Leads, and are available in Class I NP0 or N750 TC dielectric materials. Ideal for demanding environments, these capacitors ensure stability and precision. Compliant with industry standards, they meet the stringent requirements of government and institutional procurement.

Product Specifications

Specifications Cap

3 pF

Specifications Dielectric Tc

NP0

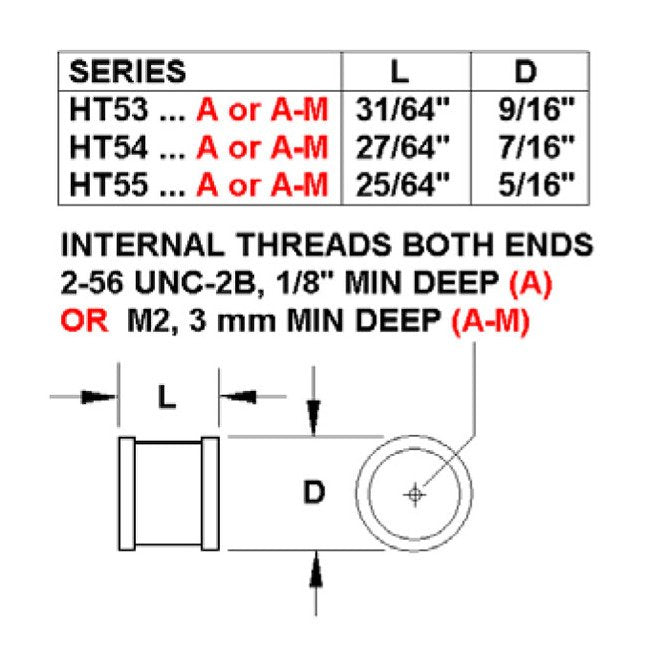

Specifications Dimension D

3/8 in

Specifications Dimension L

3/8 in

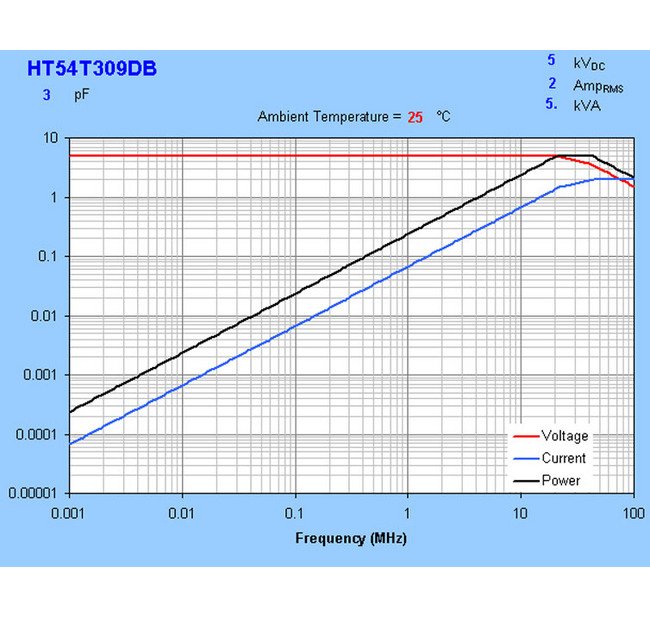

Specifications Fh

42.4 MHz

Specifications Fl

21.2 MHz

Specifications Imax Rms

2.0 A

Specifications Smax

5 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV
