High Power HT54 Series Ceramic Capacitors - 5 kVDC, 5 kVA Max Power

Name: High Power HT54 Series Ceramic Capacitors - 5 kVDC, 5 kVA Max Power
Brand: High Energy Corp.
SKU: CER-f78582
Price: 24.99 USD
Availability: OutOfStock

SKU:CER-f78582

Boost your circuits with HT54 Series Ceramic Capacitors - 5kVA Max Power, 5kVDC. Reliable, high-performance choice!

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

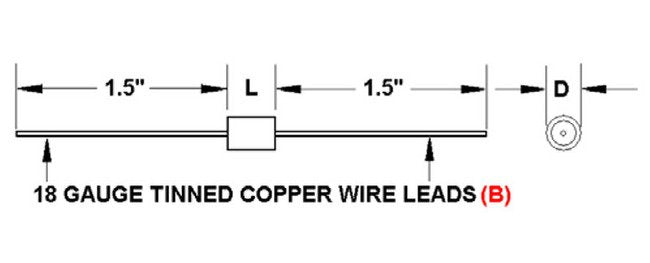

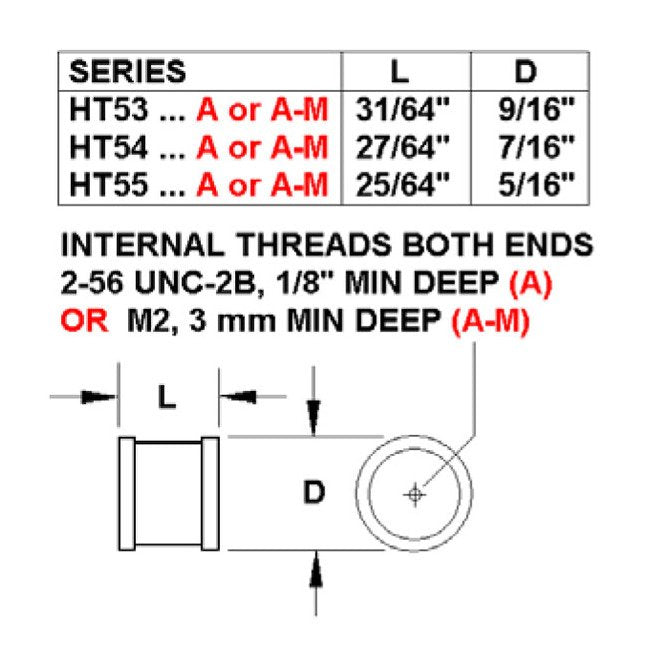

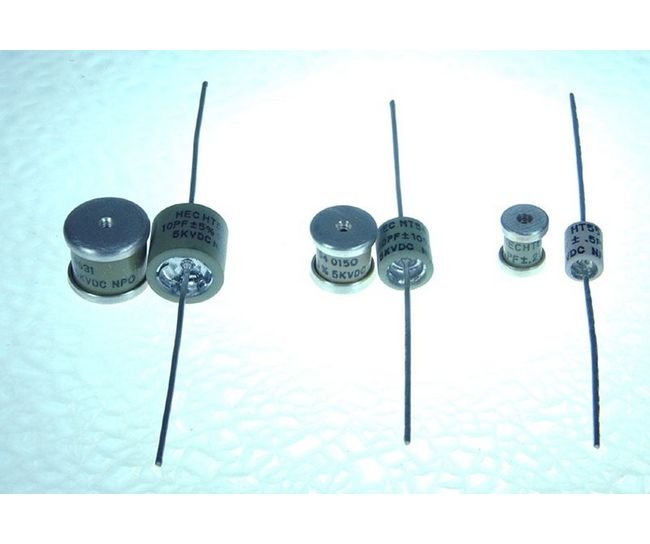

Enhance your electronic applications with the high-performance HT54 Series Ceramic Capacitors. Featuring a maximum power rating of 5 kVA and a capacitance range from 1 to 40 pF, these capacitors ensure reliable operation at a working voltage of 5 kVDC. Choose between threaded terminals or wire leads for easy installation. Built with Class I NP0 or N750 TC dielectric materials, these capacitors offer excellent stability and precision in diverse circuit environments. Trust the HT54 Series for superior performance and durability in critical electronic systems.

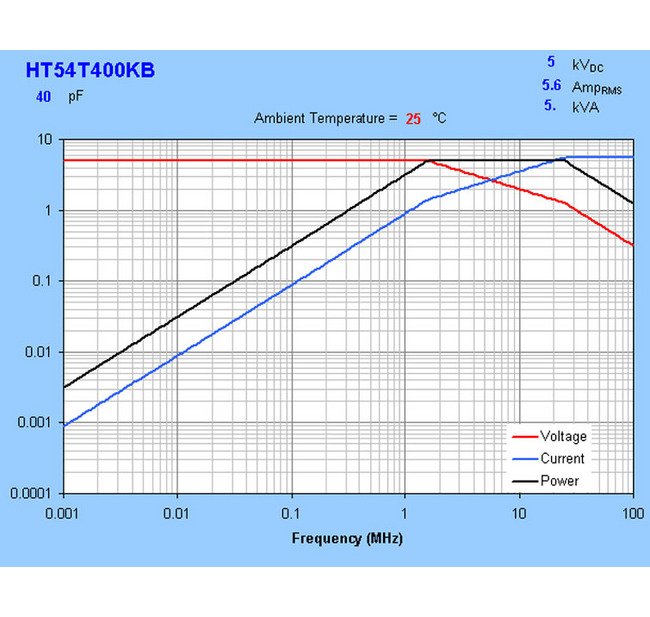

Product Specifications

Specifications Cap

40 pF

Specifications Dielectric Tc

N750

Specifications Dimension D

3/8 in

Specifications Dimension L

3/8 in

Specifications Fh

24.9 MHz

Specifications Fl

1.59 MHz

Specifications Imax Rms

5.6 A

Specifications Smax

5 kV·A

Specifications Thread

#18

Specifications Vmax Dc

5 kV

High Power HT54 Series Ceramic Capacitors - 5 kVDC, 5 kVA Max Power
