High Power Precision Pole Rotary Chuck
High Power Precision Pole Rotary Chuck
SKU:HIG-6f5089
Achieve precision and power with the High Power Precision Pole Rotary Chuck - ideal for lathes, grinders, and machinery with rotating spindles.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
High Power Precision Pole Rotary Chuck
$899.99
Quantity: 1
Claim Your Seller Account
High Power Precision Pole Rotary Chuck
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

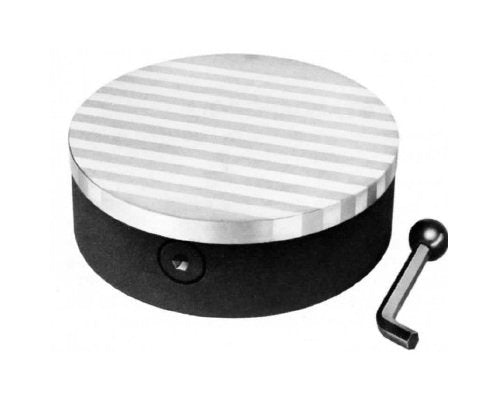

The High Power Precision Pole Rotary Chuck is designed for exceptional performance on lathes, grinders, and other machinery with rotating spindles. Featuring magnetic steel top plates with nonmagnetic stainless furnace brazed construction and strategically positioned poles, this chuck offers reliable gripping power. With dimensions A: 16 1/8 in, B: 16 in, C: 3 1/2 in, D: 12 in, F: 8 in, and a pole spacing of 3/8 in, this chuck is built to withstand heavy lathe cuts. The chuck's versatility allows for machining odd configurations, and an auxiliary plate can be easily added and removed for different work setups, maintaining efficiency and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
7 to 9 in. and 14 in. Round available on request.

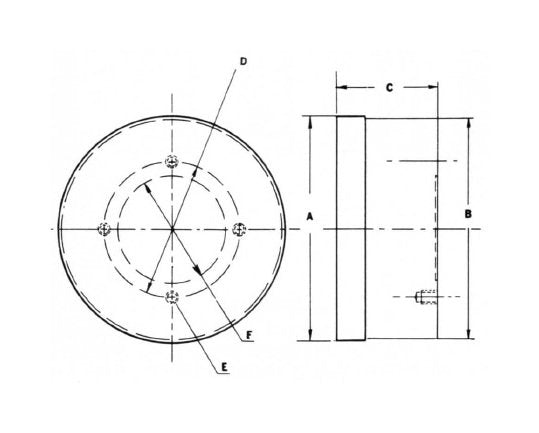

Specifications Dimension A
16 1/8 in
Specifications Dimension B
16 in
Specifications Dimension C
3 1/2 in
Specifications Dimension D
12 in
Specifications Dimension E
3/8 in -16 X 1/2 in
Specifications Dimension F
8 in
Specifications Number Of Holes
4
Specifications Pole Spacing
3/8 in
Specifications Weight
140 lb
