High-Power Small Rectangular Electromagnet
High-Power Small Rectangular Electromagnet
SKU:SMA-b2bbd7
Versatile Small Rectangular Electromagnet with 750 lb pull capacity and precise specifications for manual or automated applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High-Power Small Rectangular Electromagnet
$189.99
Quantity: 1
Claim Your Seller Account
High-Power Small Rectangular Electromagnet
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

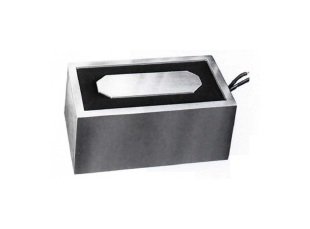

The High-Power Small Rectangular Electromagnet is a versatile solution suitable for both consumer and institutional needs. With a robust pull capacity of 750 lb, this electromagnet is ideal for diverse applications, from manual to automated operations. It features precise specifications with dimensions of 2 1/2" x 4 1/2" x 2" and 12 W power rating. Additionally, it meets industry standards and can be customized for specialized requirements. For optimal performance, the use of Rectifier-Controllers is recommended to ensure clean workpiece release.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.

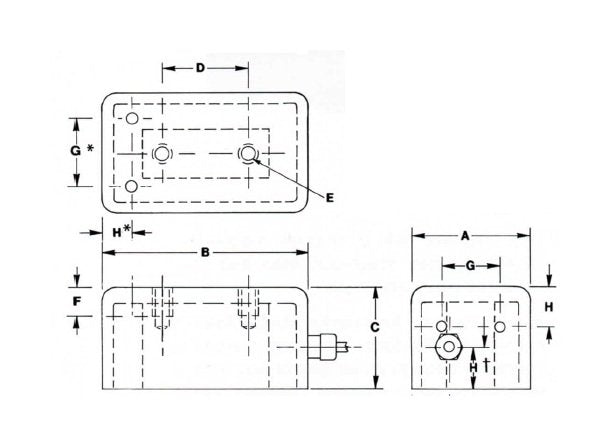

Specifications Height C
2 in
Specifications Length B
4 1/2 in
Specifications Location Of Leads G
1 1/2 in
Specifications Location Of Leads H
3/4 in
Specifications Mounting D
2 in
Specifications Net Weight
5 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
12 W
Specifications Pull Capacity
750 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread Depth F
1/2 in
Specifications Thread E
1/4 to 20 in
Specifications Width A
2 1/2 in
