High-Power Small Round Flat Faced Electromagnet
High-Power Small Round Flat Faced Electromagnet
SKU:SMA-a60906
Powerful Small Round Electromagnet for versatile applications. Strong 220 lb pull capacity on 2" flat face.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High-Power Small Round Flat Faced Electromagnet
$69.99
Quantity: 1
Claim Your Seller Account
High-Power Small Round Flat Faced Electromagnet
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

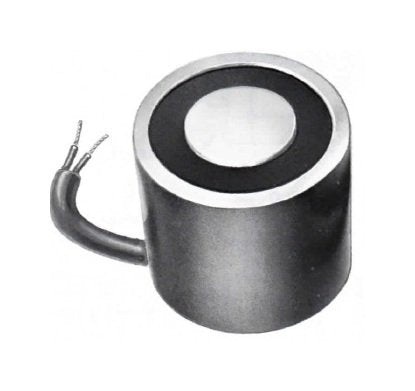

The High-Power Small Round Flat Faced Electromagnet is a versatile magnet suitable for a variety of applications. With a diameter of 2 inches and a pull capacity of 220 lbs on low carbon steel, it provides strong and reliable magnetic force. This electromagnet is designed for use on flat, smooth materials ensuring maximum contact. Operating at 12V standard DC voltage with optional ratings of 24V and 110V, it offers flexibility for different power requirements. Additionally, consult the factory for custom sizes and modifications to meet specific needs.
Product Specifications
Additional Information 0
Rectifier-Controllers are required to convert AC line current to DC, provide switching, and incorporate a release function which allows clean release of the workpiece.
Manufacturing Notes 0
Consult factory for additional sizes, modifications and custom applications.
Specifications Diameter A
2 in
Specifications Height B
1 5/8 in
Specifications Location Of Leads E
1/4
Specifications Net Weight
1 lb
Specifications Optional Dc Voltage Ratings
24 V | 110 V
Specifications Power
5.2 W
Specifications Pull Capacity
220 lb
Specifications Standard Dc Voltage
12 V
Specifications Thread C
1/4 to 20 in
Specifications Thread Depth D
1/2 in
