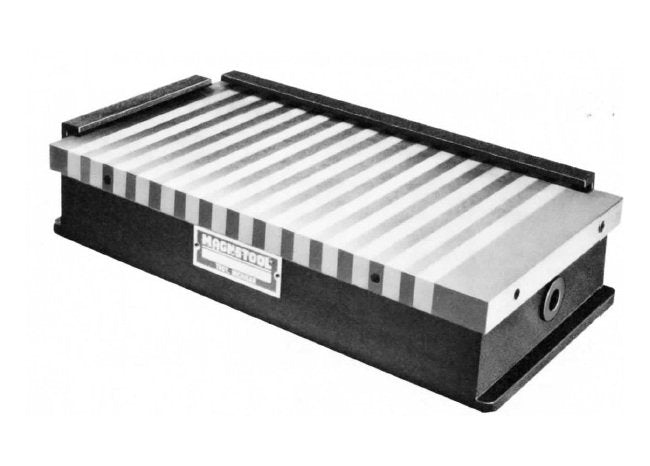

High Power Standard Pole Magnetic Chuck
High Power Standard Pole Magnetic Chuck
SKU:HIG-1b99ea
Durable High Power Magnetic Chuck with Ceramic V magnets for secure work holding in machining applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
High Power Standard Pole Magnetic Chuck
$299.99
Quantity: 1
Claim Your Seller Account
High Power Standard Pole Magnetic Chuck
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Power Standard Pole Magnetic Chuck is engineered for enhanced holding power, featuring Ceramic V magnets and a top plate constructed of 3/8 in magnetic steel and 3/8 in non-magnetic stainless steel. This durable, one-piece construction allows for drilling or machining between poles or anywhere on the top plate, excluding the screw-secured areas. With a work area of 10 1/2 x 5 3/16 in, this chuck offers a reliable solution for secure workpiece gripping in various machining applications.
Product Specifications
Specifications Base Length
10 1/4 in
Specifications Base Width
5 in
Specifications Features
Handles on all permanent magnetic chucks are removable.
Specifications Height
2 7/16 in
Specifications Length
10 in
Specifications Top Plate Material
3/8 in. Magnetic Steel | 3/8 in. Non-Magnetic Stainless Steel
Specifications Weight
24 lb
Specifications Width
5 in
Specifications Work Area L X W
10 1/2 x 5 3/16 in
