High Power Standard Pole Magnetic Chuck for Industrial Use
High Power Standard Pole Magnetic Chuck for Industrial Use
SKU:HIG-b7156c
High Power Standard Pole Magnetic Chuck for industrial applications, featuring Ceramic V magnets, 3/8 in magnetic steel and non-magnetic stainless steel construction for enhanced holding power and versatility.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
High Power Standard Pole Magnetic Chuck for Industrial Use
$399.99
Quantity: 1
Claim Your Seller Account
High Power Standard Pole Magnetic Chuck for Industrial Use
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

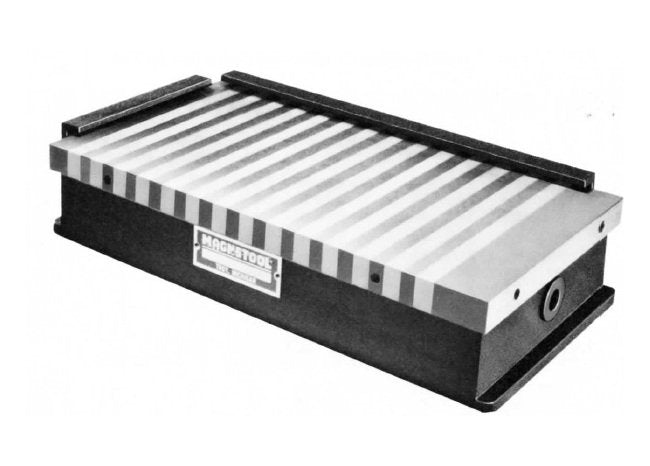

The High Power Standard Pole Magnetic Chuck is engineered for industrial applications, featuring Ceramic V magnets for increased holding power. The top plates, made of 3/8 in magnetic steel and 3/8 in non-magnetic stainless steel, are furnace brazed to ensure a solid, one-piece construction. This magnetic chuck allows for drilling and machining between poles or anywhere in the top plate, except where the screws secure the plate to the base. With a work area of 14 1/4 x 6 3/16 in and a removable handle, this magnetic chuck offers both durability and flexibility for precise machining operations.
Product Specifications
Specifications Base Length
14 in
Specifications Base Width
6 in
Specifications Features
Handles on all permanent magnetic chucks are removable.
Specifications Height
2 7/16 in
Specifications Length
14 in
Specifications Top Plate Material
3/8 in. Magnetic Steel | 3/8 in. Non-Magnetic Stainless Steel
Specifications Weight
46 lb
Specifications Width
6 in
Specifications Work Area L X W
14 1/4 x 6 3/16 in
