High Power Standard Pole Rotary Chuck for Industrial Machinery
High Power Standard Pole Rotary Chuck for Industrial Machinery
SKU:HIG-85c815
High Power Standard Pole Rotary Chuck for industrial machinery. Magnetic steel construction, ideal for lathes & grinders.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Power Standard Pole Rotary Chuck for Industrial Machinery
$129.99
Quantity: 1
Claim Your Seller Account
High Power Standard Pole Rotary Chuck for Industrial Machinery
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

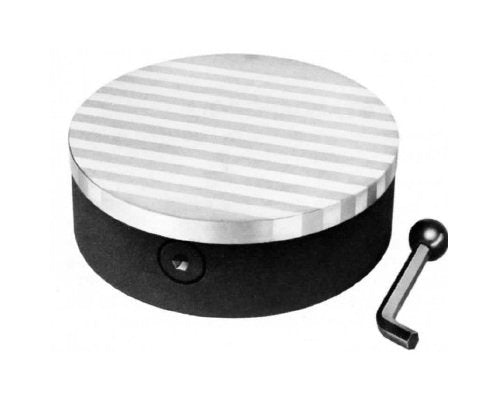

The High Power Standard Pole Rotary Chuck is a robust solution designed for lathes, grinders, and other industrial machinery with rotating spindles. Featuring magnetic steel and nonmagnetic stainless furnace brazed construction, this chuck can withstand heavy lathe cuts with the option to insert dowel pins or screws for added stability. The top plate can be machined for customized configurations, making it versatile for various workpieces. With precise dimensions of 4 3/16" (A) x 4 1/8" (B) x 2 3/16" (C) and a weight of 5 lb, this rotary chuck offers reliability and durability for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Swing-Type Shutoff. The ST series is not water-tight and should not be used with coolant. Handles are removable. 7 to 9 in. and 14 in. Round available on request.

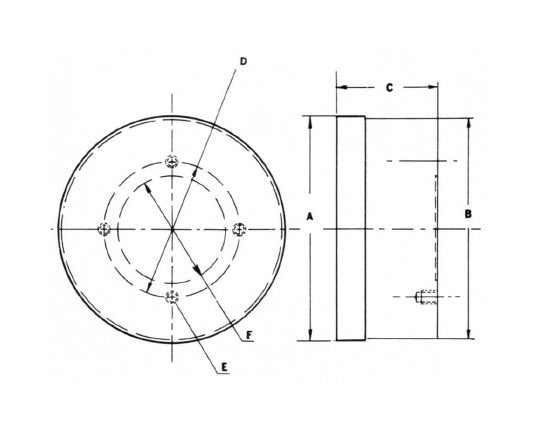

Specifications Dimension A
4 3/16 in
Specifications Dimension B
4 1/8 in
Specifications Dimension C
2 3/16 in
Specifications Dimension D
3 3/4 in
Specifications Dimension E
1/4 in -20 X 3/8 in
Specifications Dimension F
3 in
Specifications Number Of Holes
3
Specifications Pole Spacing
1/4 in
Specifications Weight
5 lb
