High Power Standard Pole Rotary Chuck for Lathes and Grinders
High Power Standard Pole Rotary Chuck for Lathes and Grinders
SKU:HIG-7581a9
High Power Rotary Chuck for lathes and grinders. Durable, versatile, and precise for heavy lathe cuts.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
High Power Standard Pole Rotary Chuck for Lathes and Grinders
$349.99
Quantity: 1
Claim Your Seller Account
High Power Standard Pole Rotary Chuck for Lathes and Grinders
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

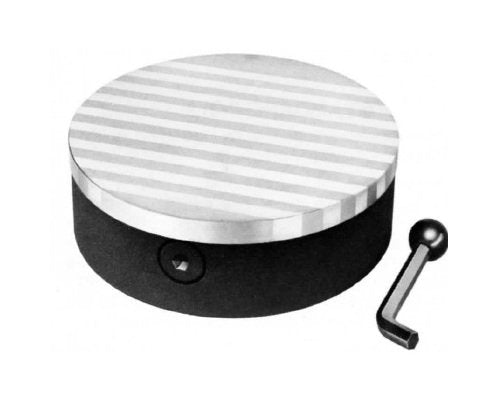

The High Power Standard Pole Rotary Chuck is a durable and versatile tool designed for use on lathes, grinders, and other machinery with rotating spindles. Featuring poles running off the edge and a magnetic steel top plate, this chuck is ideal for heavy lathe cuts requiring high torque. With the ability to insert dowel pins or screws for added stability, it offers flexibility for machining odd configurations. Additionally, the chuck can be easily customized by adding an auxiliary plate for different work setups while keeping the original plate intact. Built to withstand industrial demands, this rotary chuck guarantees precision and efficiency in your machining operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
7 to 9 in. and 14 in. Round available on request.

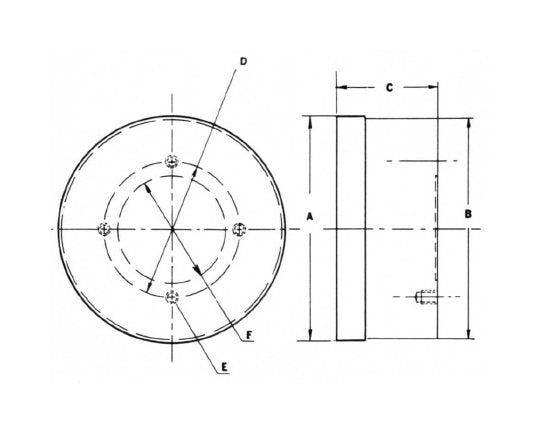

Specifications Dimension A
8 1/8 in
Specifications Dimension B
8 in
Specifications Dimension C
2 13/16 in
Specifications Dimension D
4 1/2 in
Specifications Dimension E
3/8 in -16 X 3/8 in
Specifications Dimension F
3 3/4 in
Specifications Number Of Holes
4
Specifications Pole Spacing
3/8 in
Specifications Weight
27 lb
