High-Power Water-Cooled Ceramic Capacitors
High-Power Water-Cooled Ceramic Capacitors
SKU:WAT-ed23dc
Unrivaled power capacity with low dissipation; ideal for high-power RF equipment.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
High-Power Water-Cooled Ceramic Capacitors
$299.99
Quantity: 1
Claim Your Seller Account
High-Power Water-Cooled Ceramic Capacitors
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unrivaled power capacity with our PWC Water-Cooled Ceramic Capacitors. These 'pot' style components support up to 300 Amperes and 4000 kVA in reactive power ratings. Featuring a low dissipation factor Class I dielectric and robust structural design, they excel in high-power RF equipment tank circuits. With optimal thermodynamic efficiency from water-cooling, operation at extreme power levels and high frequencies is achieved, ideal for applications like induction heating and high-frequency welding.
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
Specifications Cap
5000 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.

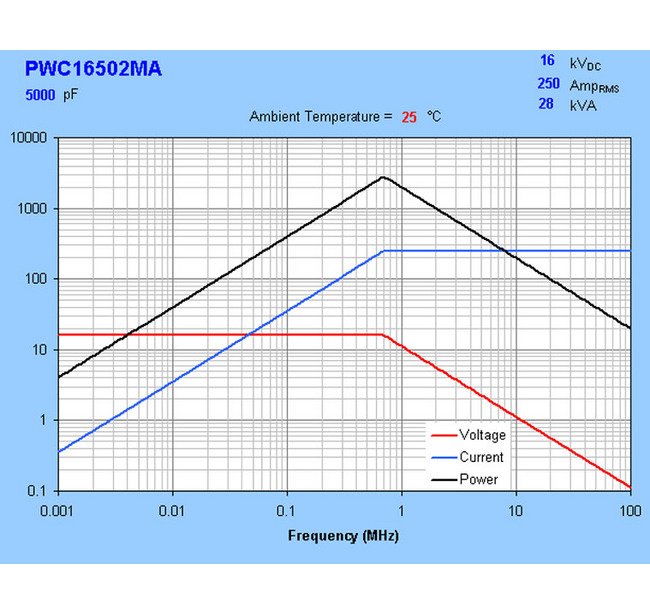

Specifications Fh
0.702 MHz
Specifications Fl
0.703 MHz
Specifications Imax Rms
250 A
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
2830 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
16 kV
