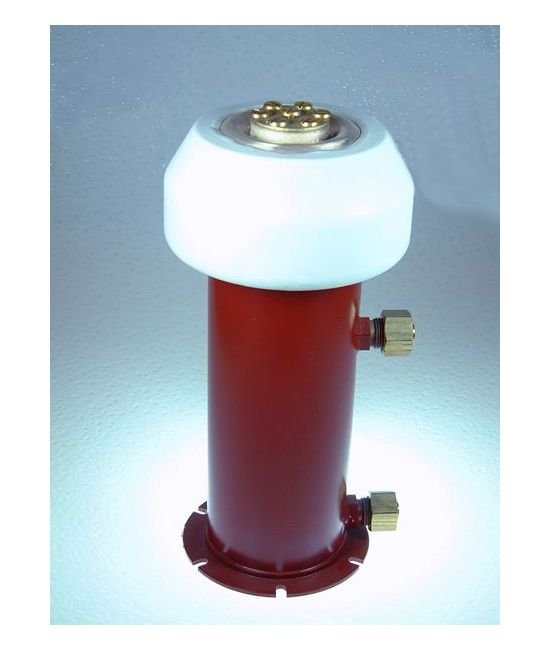

High-Power Water-Cooled Ceramic Capacitors

Name: High-Power Water-Cooled Ceramic Capacitors
Brand: High Energy Corp.
SKU: WAT-93815b
Price: 399.99 USD
Availability: OutOfStock

SKU:WAT-93815b

Experience unprecedented power capacity with PWC Water-Cooled Ceramic Capacitors. Ideal for high-frequency welding and induction heating applications.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

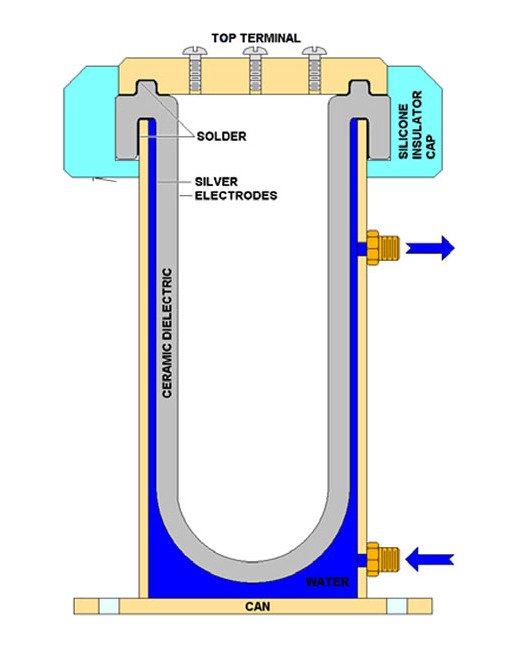

The PWC Water-Cooled Ceramic Capacitors series offers unmatched current capacity of up to 300 Amperes and reactive power ratings reaching 4000 kVA. Designed with a low dissipation factor Class I dielectric and superior structural strength, these capacitors leverage efficient water-cooling for optimal performance at high power levels and frequencies. Perfect for high-power RF equipment tank circuits, they excel in applications like induction heating, dielectric heating, and high-frequency welding.

Product Specifications

Cooling Requirements Closed System Derating

Increase Cooling Flow by 20% when antifreeze is used

Cooling Requirements Cooling Water Pressure

Not to exceed 60 PSIA (132 feet of H2O)

Cooling Requirements Inlet Water Temperature

30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained

Cooling Requirements Maximum Capacitor Temperature

The maximum allowable temperature of the Inner Terminal is 100ºC.

Cooling Requirements Maximum Temperature Rise

The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.

Specifications Cap

10000 pF

Specifications Capacitance Tolerance

±20% (Standard) | ±10% (Optional)

Specifications Dielectric Strength

Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.

Specifications Fh

0.421 MHz

Specifications Fl

0.422 MHz

Specifications Imax Rms

300 A

Specifications Maximum Dissipation Factor

0.05%

Specifications Minimum Insulation Resistance

10000 MΩ

Specifications Operating Temperature Range

-55 to +85 ºC

Specifications Smax

3395 kV·A

Specifications Standard Markings

"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code

Specifications Storage Temperature Range

-55 to 125 ºC

Specifications Vmax Dc

16 kV
