High-Power Water-Cooled Ceramic Capacitors

Name: High-Power Water-Cooled Ceramic Capacitors
Brand: High Energy Corp.
SKU: WAT-0a09e7
Price: 399.99 USD
Availability: OutOfStock

SKU:WAT-0a09e7

Unleash high-power capabilities with our water-cooled ceramic capacitors. Low dissipation factor, water-cooling technology for extreme power levels.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

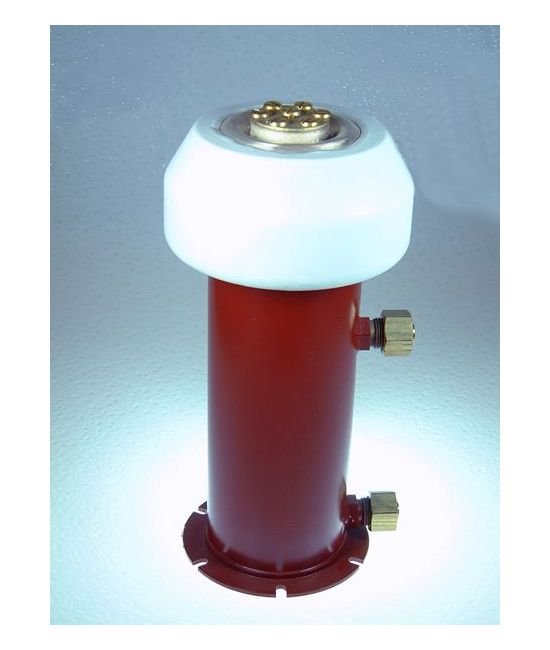

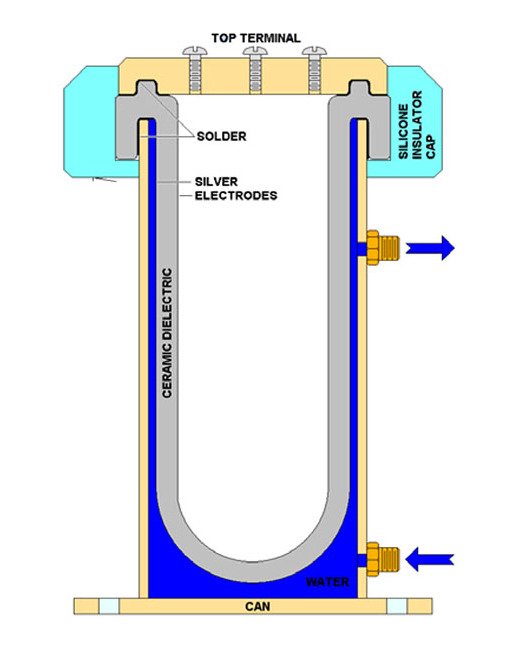

Experience unparalleled power capacity with our PWC Water-Cooled Ceramic Capacitors. Designed for high current and reactive power applications, these capacitors feature a low dissipation factor Class I dielectric and robust structural integrity. The innovative water-cooling system ensures exceptional thermodynamic efficiency, enabling operation at extreme power levels and frequencies. Ideal for high power RF equipment like induction heating and dielectric welding systems.

Product Specifications

Cooling Requirements Closed System Derating

Increase Cooling Flow by 20% when antifreeze is used

Cooling Requirements Cooling Water Pressure

Not to exceed 60 PSIA (132 feet of H2O)

Cooling Requirements Inlet Water Temperature

30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained

Cooling Requirements Maximum Capacitor Temperature

The maximum allowable temperature of the Inner Terminal is 100ºC.

Cooling Requirements Maximum Temperature Rise

The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.

Specifications Cap

5000 pF | 6000 pF

Specifications Capacitance Tolerance

±20% (Standard) | ±10% (Optional)

Specifications Dielectric Strength

Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.

Specifications Fh

0.644 MHz | 0.662 MHz

Specifications Fl

0.398 MHz | 0.477 MHz

Specifications Imax Rms

250 A | 270 A

Specifications Maximum Dissipation Factor

0.05%

Specifications Minimum Insulation Resistance

10000 MΩ

Specifications Operating Temperature Range

-55 to +85 ºC

Specifications Smax

3000 kV·A

Specifications Standard Markings

"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code

Specifications Storage Temperature Range

-55 to 125 ºC

Specifications Vmax Dc

20 kV

High-Power Water-Cooled Ceramic Capacitors
