High-Power Water-Cooled Ceramic Capacitors

Name: High-Power Water-Cooled Ceramic Capacitors
Brand: High Energy Corp.
SKU: WAT-dc6406
Price: 199.99 USD
Availability: OutOfStock

SKU:WAT-dc6406

Power up your RF equipment with high-capacity water-cooled ceramic capacitors for optimal performance and durability.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your high-power RF equipment with our PWC Water-Cooled Ceramic Capacitors, featuring a current capacity of 300 Amperes and reactive power ratings up to 4000 kVA. These Class I dielectric components with water-cooling ensure operational efficiency at extreme power levels and high frequencies, perfect for applications like induction heating and high-frequency welding. With a capacitance of 5000 pF, VMAX (DC) of 25 kV, and a low dissipation factor, these capacitors deliver top-notch performance in demanding environments.

Product Specifications

Cooling Requirements Closed System Derating

Increase Cooling Flow by 20% when antifreeze is used

Cooling Requirements Cooling Water Pressure

Not to exceed 60 PSIA (132 feet of H2O)

Cooling Requirements Inlet Water Temperature

30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained

Cooling Requirements Maximum Capacitor Temperature

The maximum allowable temperature of the Inner Terminal is 100ºC.

Cooling Requirements Maximum Temperature Rise

The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.

Specifications Cap

5000 pF

Specifications Capacitance Tolerance

±20% (Standard) | ±10% (Optional)

Specifications Dielectric Strength

Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.

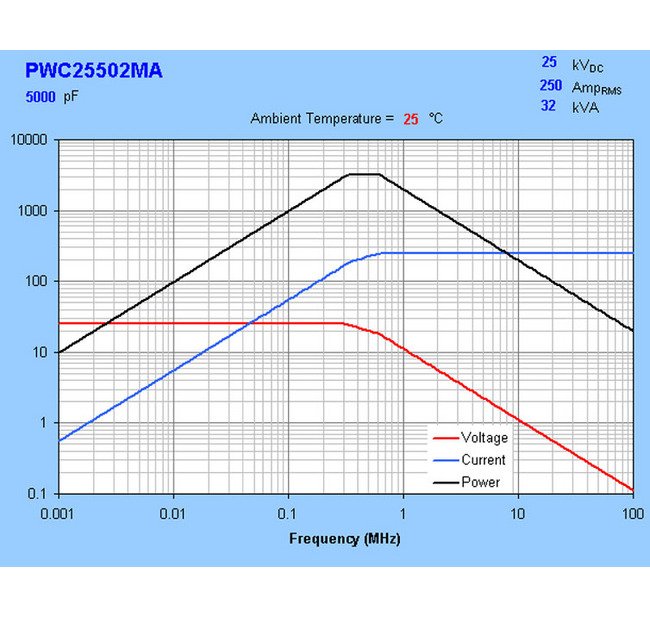

Specifications Fh

0.621 MHz

Specifications Fl

0.326 MHz

Specifications Imax Rms

250 A

Specifications Maximum Dissipation Factor

0.05%

Specifications Minimum Insulation Resistance

10000 MΩ

Specifications Operating Temperature Range

-55 to +85 ºC

Specifications Smax

3200 kV·A

Specifications Standard Markings

"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code

Specifications Storage Temperature Range

-55 to 125 ºC

Specifications Vmax Dc

25 kV
