High Power Water-Cooled Ceramic Capacitors
High Power Water-Cooled Ceramic Capacitors
SKU:CER-8bde81
Powerful water-cooled ceramic capacitors for high-frequency applications with superior current capacity and reactive power ratings.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
High Power Water-Cooled Ceramic Capacitors
$599.99
Quantity: 1
Claim Your Seller Account
High Power Water-Cooled Ceramic Capacitors
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PWC Water-Cooled Ceramic Capacitors from our PWC Series are designed as large 'pot' style components, offering an impressive current capacity of up to 300 Amperes and a maximum reactive power rating of 4000 kVA. Featuring a low dissipation factor Class I dielectric and robust structural strength, these capacitors leverage efficient water-cooling for sustained operation at high power levels and frequencies. Ideal for tank circuit applications in high-power RF equipment, these capacitors excel in induction heating, dielectric heating, and high-frequency welding setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.

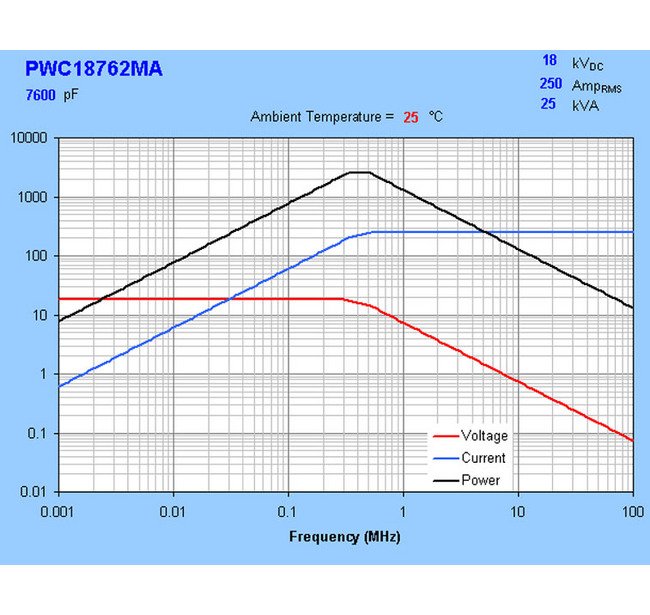

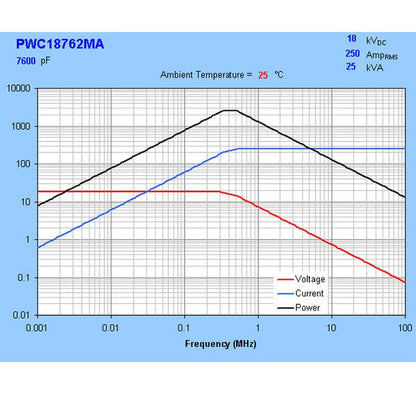

Specifications Cap
7600 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Fh
0.523 MHz
Specifications Fl
0.323 MHz
Specifications Imax Rms
250 A
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
2500 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
18 kV
