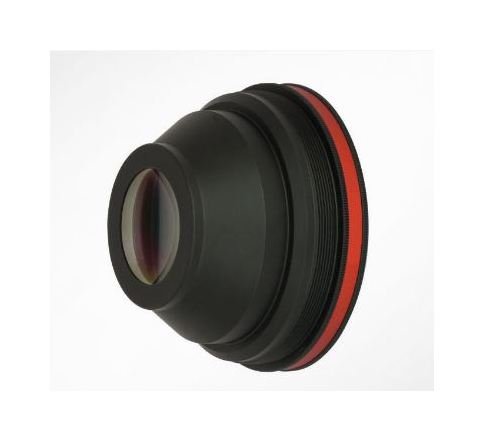

High Precision 100mm F-Theta Lens
High Precision 100mm F-Theta Lens
SKU:STO-6005a8
Enhance laser scanning precision with this high-quality 100mm F-Theta Lens. Optimal for ±27.1mm scan fields. M85×1 mounting threads for easy setup.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
High Precision 100mm F-Theta Lens
$249.99
Quantity: 1
Claim Your Seller Account
High Precision 100mm F-Theta Lens
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-FT-065-100 Stock F-Theta Lens is an essential component for laser scanning applications, featuring a precise effective focal length of 100mm. With a wide scanning width of 65x65mm and a telecentric angle of 3 degrees, this lens ensures exceptional imaging stability and accuracy. Designed with a telecentric design and a pupil diameter of 20mm, it guarantees uniform brightness across the entire scan field of ±27.1mm. The lens is constructed with M85×1 mounting threads for easy installation, meeting rigorous industry standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Effective Focal Length
100 mm
Specifications Flange Distance
191.2 mm
Specifications Focal Spot Diameter
86.0-90.0
Specifications M1 M2 Distance
28 mm
Specifications M2 Lens Center
44.07 mm
Specifications M2 Threaded End
25 mm
Specifications Mounting Threads
M85Ã1
Specifications Pupil Diameter
20 mm
Specifications Scanning Width
65*65 mm
Specifications Scan Field
±27.1 mm
Specifications Telecentric Angle
3
Specifications Wavelength
9.4 µm
Specifications Working Distance
100.9 mm
