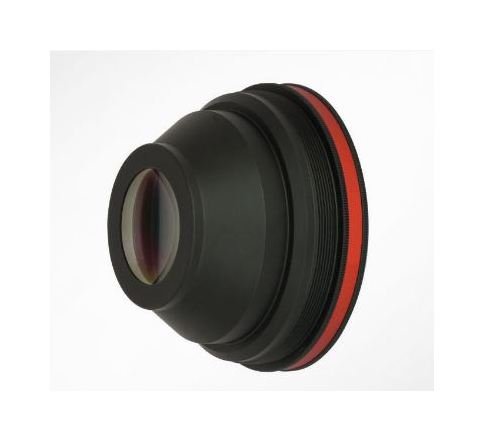

High-Precision 100mm F-Theta Lens for Laser Scanning
High-Precision 100mm F-Theta Lens for Laser Scanning
SKU:STO-dbb814
Enhance your laser scanning accuracy with the high-precision SO-FT-060-100 F-Theta Lens. Designed for industrial and scientific applications, this lens ensures exceptional imaging clarity and reliability.
Regular price
$689.00
Regular price
Sale price
$689.00
Unit price
per
Initiate Order
High-Precision 100mm F-Theta Lens for Laser Scanning
$689.00
Quantity: 1
Claim Your Seller Account
High-Precision 100mm F-Theta Lens for Laser Scanning
$689.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-FT-060-100 Stock F-Theta Lens is a top-tier optical component designed for precision laser scanning applications. With a robust construction and advanced specifications like wavelengths of 1064/532 nm and 355 nm, effective focal length of 100 mm, and scanning width of 60*60 mm, this lens ensures exceptional clarity and accuracy in imaging. Additionally, it boasts features such as a telecentric angle of 4 degrees, a wide scan field of ±25 mm, and a compact design with mounting threads of M85×1. Ideal for industrial and scientific settings, this lens delivers outstanding performance and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Beam Diameter
10 mm
Specifications Effective Focal Length
100 mm
Specifications Flange Distance
147.06 mm | 192.9 mm
Specifications Focal Spot Diameter
14-30
Specifications M1 M2 Distance
13 mm | 20 mm
Specifications M2 Lens Center
19 mm | 23.5 mm
Specifications M2 Mountingthread
18.3 mm
Specifications M2 Threaded End
55.1 mm
Specifications Mounting Threads
M85Ã1
Specifications Pupil Diameter
6 mm
Specifications Scanning Width
60*60 mm
Specifications Scan Angle
±24.4 º
Specifications Scan Field
±25 mm | 60*60 mm
Specifications Spot Size Diameter Center Edge
20-23 µm
Specifications Telecentric Angle
4
Specifications Wavelength
1064/532 nm | 355 nm
Specifications Working Distance
143.3 mm | 70.46 mm
