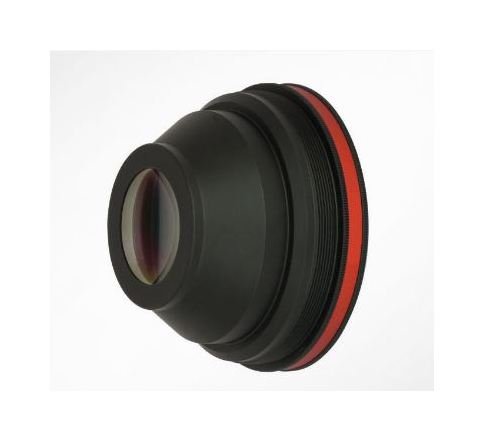

High Precision 1064nm F-Theta Lens
High Precision 1064nm F-Theta Lens
SKU:STO-5e6eeb
Achieve precision with the High Precision 1064nm F-Theta Lens. Wavelength: 1064 nm, Focal Length: 115 mm, Scanning Width: 50x50 mm.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
High Precision 1064nm F-Theta Lens
$399.99
Quantity: 1
Claim Your Seller Account
High Precision 1064nm F-Theta Lens
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-FT-050-115 Stock F-Theta Lens offers unparalleled precision for laser scanning applications. With a wavelength of 1064 nm, an effective focal length of 115 mm, and a generous scanning width of 50x50 mm, this lens ensures exceptional clarity and accuracy. Its telecentric angle of 2.6 degrees and telecentric design guarantee uniform scanning results across the ±18.11 mm scan field. Meeting strict standards for mounting with M85x1 threads and a flange distance of 205.76 mm, this lens also provides a focal spot diameter of 15.4-16.8 mm, ideal for high-resolution imaging.
Product Specifications
Specifications Effective Focal Length
115 mm
Specifications Flange Distance
205.76 mm
Specifications Focal Spot Diameter
15.4-16.8
Specifications M1 M2 Distance
19.24 mm
Specifications M2 Lens Center
37 mm
Specifications M2 Threaded End
45 mm
Specifications Mounting Threads
M85Ã1
Specifications Pupil Diameter
14 mm
Specifications Scanning Width
50*50 mm
Specifications Scan Field
±18.11 mm
Specifications Telecentric Angle
2.6
Specifications Wavelength
1064 nm
Specifications Working Distance
81.26 mm
