High-Precision 355nm 100mm F-Theta Lens
High-Precision 355nm 100mm F-Theta Lens
SKU:STO-813b21
High-Precision 355nm 100mm F-Theta Lens for accurate laser scanning over a wide area. Ideal for institutional applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
High-Precision 355nm 100mm F-Theta Lens
$499.99
Quantity: 1
Claim Your Seller Account
High-Precision 355nm 100mm F-Theta Lens
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

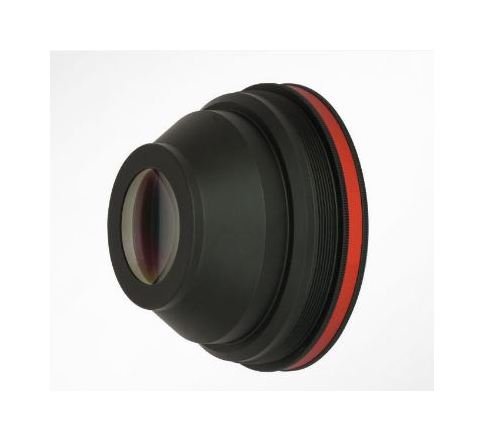

The SO-FT-035-100 Stock F-Theta Lens is a cutting-edge optical component designed for high-precision laser scanning applications. With a wavelength of 355nm and an effective focal length of 100mm, this lens delivers exceptional scan field accuracy of ±14.4mm over a 35x35mm area. Its telecentric angle of 4 degrees ensures distortion-free imaging, while the pupil diameter of 10mm allows for optimal light transmission. With M55×1 mounting threads and compliance with stringent industry standards, including Federal/DoD procurement requirements, this lens guarantees top-notch performance and reliability in institutional settings.
Product Specifications
Specifications Effective Focal Length
100 mm
Specifications Flange Distance
203.47 mm
Specifications Focal Spot Diameter
6.56-7.18
Specifications M1 M2 Distance
16 mm
Specifications M2 Lens Center
33.27 mm
Specifications M2 Threaded End
32.6 mm
Specifications Mounting Threads
M55Ã1
Specifications Pupil Diameter
10 mm
Specifications Scanning Width
35*35 mm
Specifications Scan Field
±14.4 mm
Specifications Telecentric Angle
4
Specifications Wavelength
355 nm
Specifications Working Distance
131.95 mm
