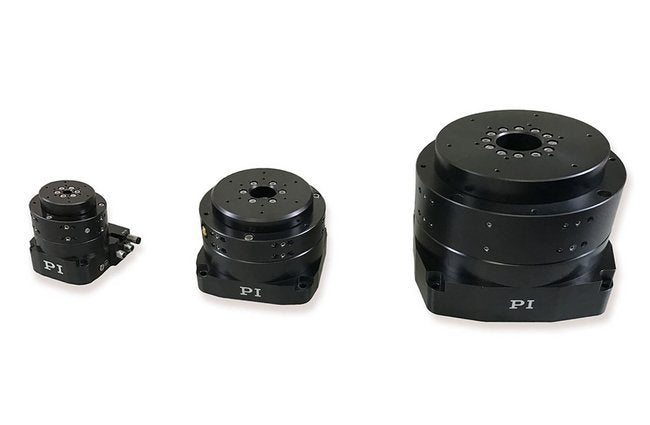

High Precision Air Bearing Rotary Table with Direct Drive Torque Motors
High Precision Air Bearing Rotary Table with Direct Drive Torque Motors
SKU:A62-bc5d58
Achieve precision with our High Precision Air Bearing Rotary Table. Ideal for cleanrooms, indexing, and scanning.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
High Precision Air Bearing Rotary Table with Direct Drive Torque Motors
$2,899.99
Quantity: 1
Claim Your Seller Account
High Precision Air Bearing Rotary Table with Direct Drive Torque Motors
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Precision Air Bearing Rotary Table with Direct Drive Torque Motors is perfect for precise indexing, positioning, and scanning applications. Designed for cleanroom compatibility, this motorized rotation stage offers exceptional accuracy, stiffness, and ease of use in any mounting orientation. Combining various options allows for tailored solutions ideal for both point-to-point indexing and constant velocity scanning. With superior travel accuracy, flatness, and wobble performance, this friction-free system requires no maintenance or lubrication, making it ideal for cleanroom environments. Optional absolute encoders provide explicit position information, eliminating the need for referencing during operation, enhancing efficiency and safety. Applications include optical alignment, metrology, inspection systems, calibration, and scanning.
Product Specifications

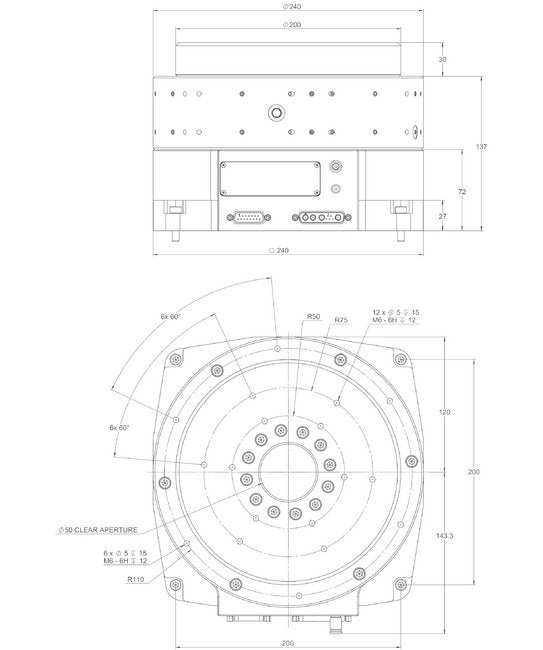

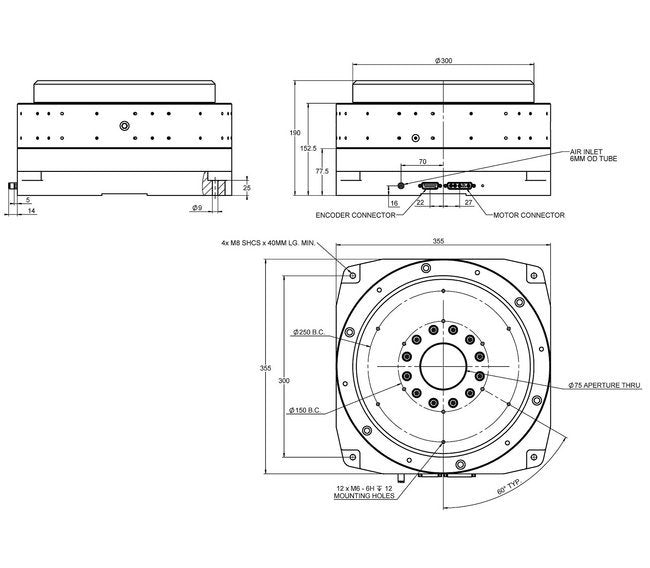

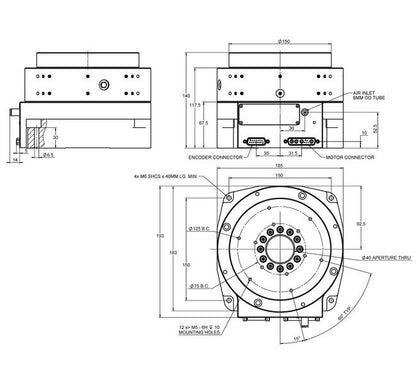

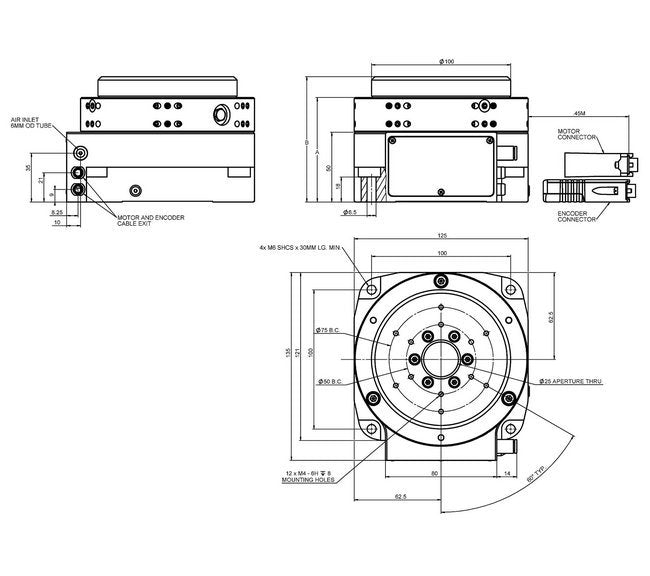

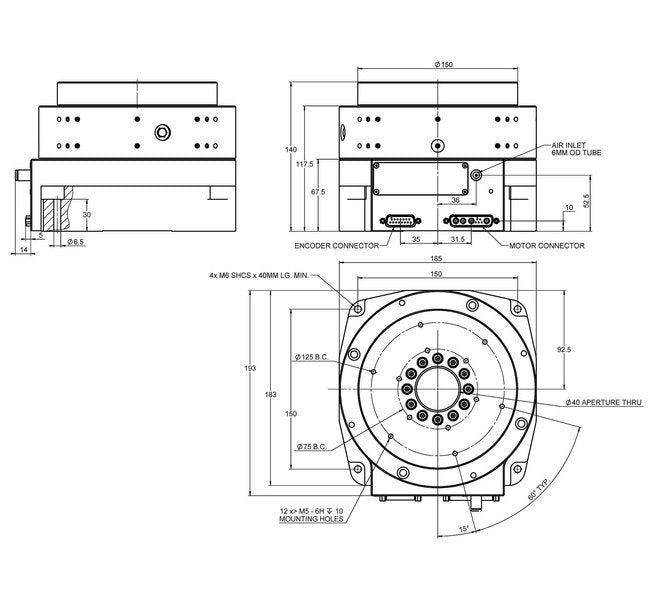

More Information Specifications Cad Drawings Manuals Etc Click L
Specifications, CAD / Drawings, Manuals, Videos
