High Precision CB-NB Collet Chucks
High Precision CB-NB Collet Chucks
SKU:QUI-742427
Achieve precision clamping with our High Precision CB-NB Collet Chucks, designed for efficiency and longevity in machining operations.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
High Precision CB-NB Collet Chucks
$4,999.99
Quantity: 1
Claim Your Seller Account
High Precision CB-NB Collet Chucks
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled precision and efficiency with our CB-NB Collet Chucks featuring a Pull Back design. The direct coupling of the collet to the draw tube connector ensures maximum clamping force with radial adjusting screws for precise alignment. With a low profile and lubricated-for-life design, these chucks offer increased tool clearance and minimal maintenance. Hardened components and precision ground construction guarantee exceptional accuracy and longevity, making them ideal for institutional and government procurement needs.
Product Specifications
Specifications Accuracy
0.0006 in | 0.015 mm

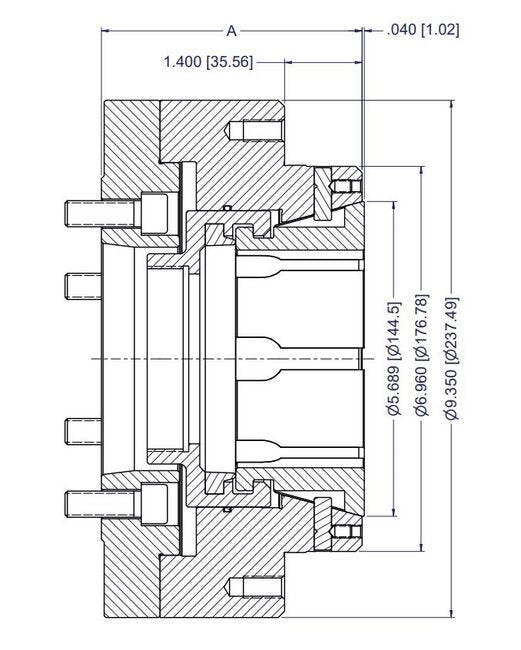

Specifications A Dimension
4.71 in | 119.63 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK100BZI
Specifications Item No
15 100 140
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-6
Specifications Weight
57.67 lb | 26.15 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
