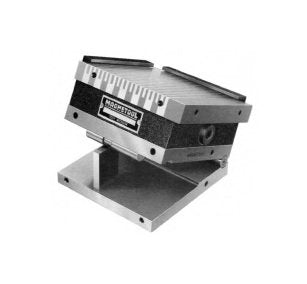

High-Precision Compound Angle Magnetic Sine Plate
High-Precision Compound Angle Magnetic Sine Plate
SKU:FIN-c21300
Achieve precise angular setups swiftly with the High-Precision Magnetic Sine Plate. Durable and magnetic, perfect for secure workholding.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
High-Precision Compound Angle Magnetic Sine Plate
$699.99
Quantity: 1
Claim Your Seller Account
High-Precision Compound Angle Magnetic Sine Plate
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience swift and accurate angular setups with the High-Precision Compound Angle Magnetic Sine Plate. Crafted with high-power ceramic magnets, this Sine Plate ensures unwavering magnetic strength for secure workholding. The steel and stainless steel top plates, furnace brazed into a single solid plate, guarantee durability and stability. Featuring a standard pole spacing of 3/8 in, with the option for 1/8 in pole spacing, this Sine Plate accommodates a variety of workpiece thicknesses. With a surface area of 72 in² and a Material Hardness of 58 to 60 Rockwell C, this Sine Plate offers precision and reliability for machining tasks.
Product Specifications
Additional Information 0
Tolerance in squareness, parallelism and between rolls on 363 and 66 is .0002, 612 is .0003, 618 is .0004. Plates and rolls are made of SAE .8620 steel carburized and hardened to 58 to 60 Rockwell "C" scale.
Specifications Height
5 3/4 in
Specifications Material Hardness
58 to 60 Rockwell C
Specifications Plate And Roll Material
SAE .8620 Steel Carburized
Specifications Sine
5.000 - 10.000
Specifications Standards
SAE
Specifications Standard Pole Spacing
3/8 in
Specifications Surface Area
72 in²
Specifications Tolerance
.0003 in
Specifications Type
Compound Angle
Specifications Weight
85 lb
