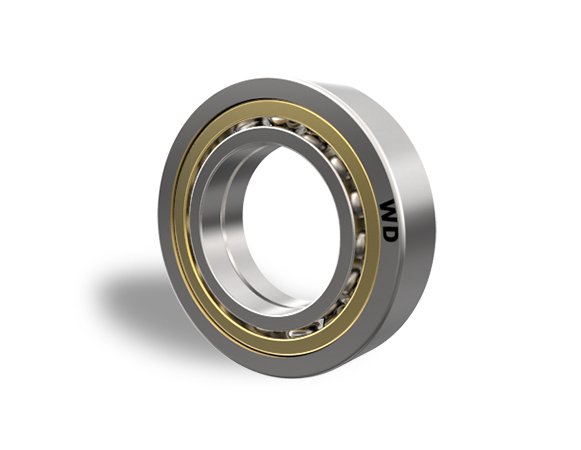

High Precision Four Point Contact Ball Bearings 90mm x 160mm x 30mm
High Precision Four Point Contact Ball Bearings 90mm x 160mm x 30mm
SKU:ANG-681079
High Precision Four Point Contact Ball Bearings for reliable performance in demanding applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Precision Four Point Contact Ball Bearings 90mm x 160mm x 30mm
$129.99
Quantity: 1
Claim Your Seller Account
High Precision Four Point Contact Ball Bearings 90mm x 160mm x 30mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Four Point Contact Ball Bearings are meticulously engineered for superior performance and reliability. With a bore diameter of 90mm, outside diameter of 160mm, and overall bearing width of 30mm, these bearings offer exceptional load ratings of 167 kN (Dynamic) and 173 kN (Static). Operating at a grease limiting speed of 3100 rpm and an oil limiting speed of 4300 rpm, these bearings ensure smooth operation under varying conditions. Designed to meet stringent industry standards, these bearings are ideal for applications requiring precision and durability.
Product Specifications

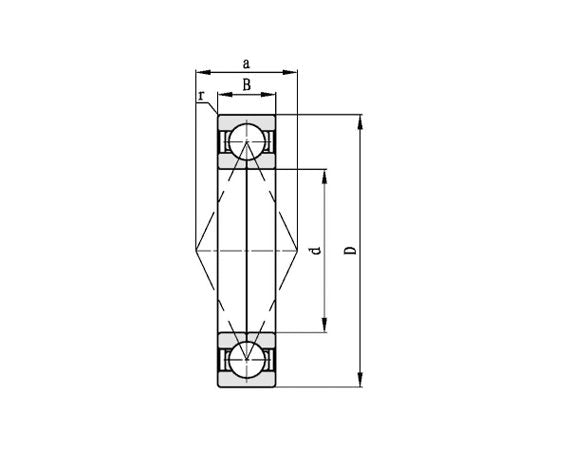

Boundary Dimensions Bore Diameter
90 mm
Boundary Dimensions Minimum Dimension R
2 mm
Boundary Dimensions Outside Diameter
160 mm
Boundary Dimensions Overall Bearing Width
30 mm
Limiting Speed Grease Limiting Speed
3100 rpm
Limiting Speed Oil Limiting Speed
4300 rpm
Load Rating Dynamic Cr Load Rating
167 kN
Load Rating Static Cor Load Rating
173 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
150 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
100 mm
Specifications Approximate Mass
2.77 kg
Specifications Distance Of Working Points A
87.5 mm
