Experience unparalleled precision and durability with the LS1 Series Linear Position Sensor. Offering a wide measuring range of 100 mm, this sensor boasts exceptional linearity, high repeatability, and long-term reliability, making it ideal for demanding position sensing applications. With advanced features like non-contact inductive sensors, customizable programming, and robust construction, this sensor ensures accurate and consistent performance in diverse environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuating Rod
AISI 303 | Internal thread M2.5x6 | Stainless Steel | With anti-rotation safeguard
Specifications Approximate Weight With Cable
200 g
Specifications Approximate Weight With Connector
150 g
Specifications Bearings
Both ends in metal-polymer glide bearings

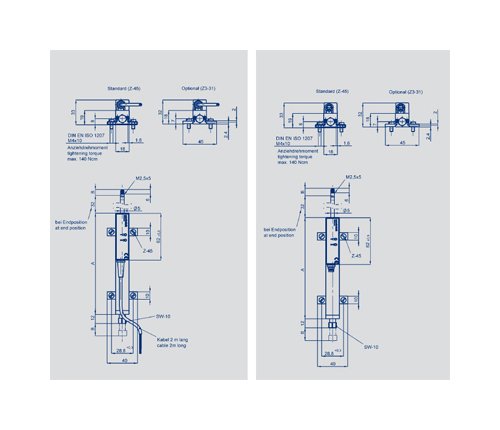

Specifications Body Length Dimension A
166 mm
Specifications Dc Output Voltage Signal
0.1 to 10 V | 10 to 0.1 V
Specifications Dc Overvoltage Protection Permanent
< 40 V
Specifications Dc Voltage
16 to 30 V
Specifications Electrical Connection
3-pin round connector | 3-wire PVC-cable | 3x 0,14 mm2 | Shielded 2 m length | Shielded | M8 x 1
Specifications Electrical Measuring Range
100 mm
Specifications Electronic
SMD with ASIC | Intergrated
Specifications Emission
RF noise field strength EN 55011, class B
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
Anodized Aluminum
Specifications Included In Delivery
1 probe tip with pressed-in hardened metal ball | 2 mounting clamps Z-45 incl. | 4 cylinder screws M4x10,
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Internal Resistance Of Voltage Output
120 O
Specifications Life
> 100 x 106 Movements
Specifications Maximum Operating Acceleration
5 g
Specifications Maximum Operating Force To End Stop
5 N
Specifications Maximum Operating Frequency
10 Hz
Specifications Maximum Operating Velocity
5 m/s
Specifications Maximum Permitted Tightening Torque For Mounting
140 N·cm
Specifications Maximum Supply Voltage Ripple Vss
10 %
Specifications Mean Time To Failure Mttf
24 Years
Specifications Measurement Principle
NOVOPAD Inductive
Specifications Mechanical Stroke Dimension B
105 mm
Specifications Mounting
Adjustable Clamps
Specifications Noise Immunity
Burst EN 61000-4-4 | Conducted disturbances induced by RF fields EN 61000-4-6 | ESD EN 61000-4-2 | Radiated immunity EN 61000-4-3
Specifications On Request Available
Customized length and electrical connection e.g. cable with connector.
Specifications Operating Force Horizontal
= 2.5
Specifications Operating Force Retracted Horizontal
= 5.0
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Operating Temperature Range With Cable
-30 to 100 ºC
Specifications Operating Temperature Range With Connector
-40 to 85 ºC

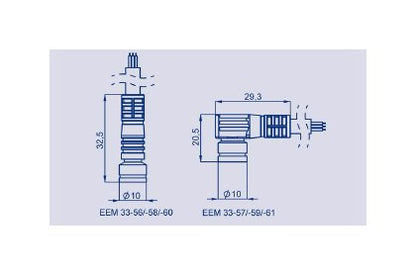

Specifications Optional Accessories
4 cylinder screws M4 x 10 | 4 mounting clamps Z3-31 incl. | P/N 059010 PUR-cable with 3-pin female connector, M8 x 1, 3 x 0.25 mm2, shielded: 2 m length, EEM 33-56, 5 m length, EEM 33-58, 10 m length, EEM 33-60 | PUR-cable with 3-pin female angled connector, M8 x 1,3 x 0.25 mm2, shielded: 2 m length, EEM 33-57, 5 m length, EEM 33-59, 10 m length, EEM 33-61.
Specifications Output Short Circuit Proof
Against supply max 30 VDC and GND (permanent)
Specifications Power Consumption Without Load
< 1 W
Specifications Repeatability Voltage High Speed Mode
< 10 mV,typical < 3 mV
Specifications Repeatability Voltage Low Speed Mode
< 5 mV,typical < 2 mV
