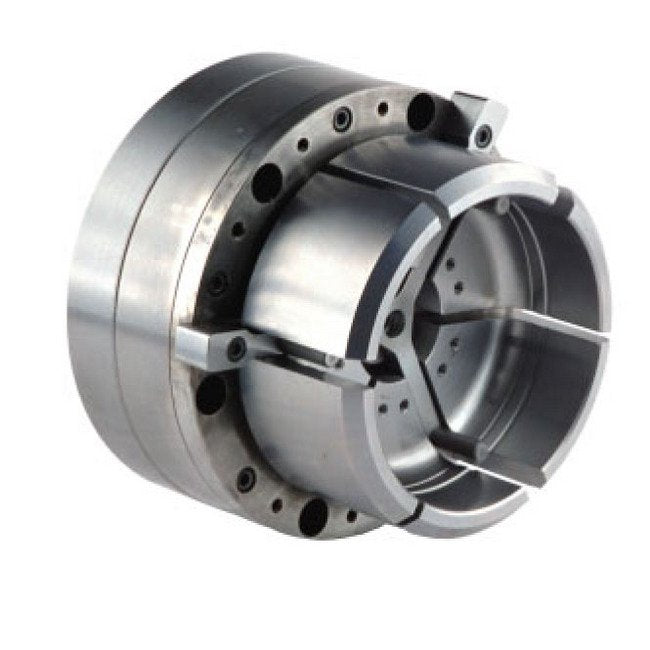

The MBS/Z Draw Bar Operated Diaphragm Chuck features a cutting-edge design suitable for OD and ID chucking in cylindrical grinding and turning applications. With a chuck size of 10 inches and a max jaw force of 38,075 lbf, this chuck ensures high concentricity for precision workpieces. Operable with hydraulic or pneumatic cylinders, it offers exceptional repeating accuracy of .0001 inches, making it ideal for tasks requiring high chucking force and rapid spindle speeds.
Product Specifications

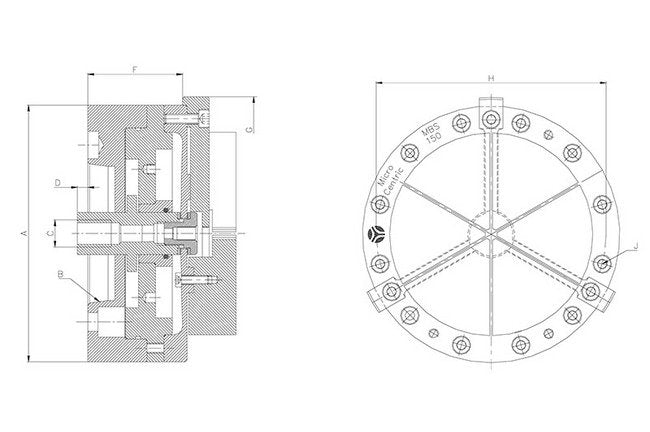

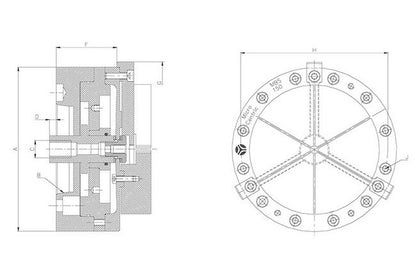

Specifications A Dimension
10.00 in | 254 mm
Specifications B Dimension
A2-8
Specifications Chuck Size
10 in | 254 mm
Specifications C Dimension
M20
Specifications D Dimension
.354 in | 9.0 mm
Specifications F Dimension
3.34 in | 84.8 mm
Specifications G Dimension
10.39 in | 263.9 mm
Specifications H Dimension
9.200 in | 233.7 mm
Specifications Item No
41 250 001
Specifications Jaw Stroke
.120 in | 2 mm
Specifications J Dimension
M10
Specifications Max Jaw Force
38,075 lbf | 17,300 kgf
Specifications Max Rpm
4,000
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
60.9 lb | 27.7 kg
Standard Equipment Available Standard Equipment
ASS-250, AAS Part Stop Spider | MMR-250-6, MMR Diaphragms | SMR-250-38S, SMR Blank Top Jaws | SMR-250-50S, SMR Blank Top Jaws | SMR-250-75S, SMR Blank Top Jaws
