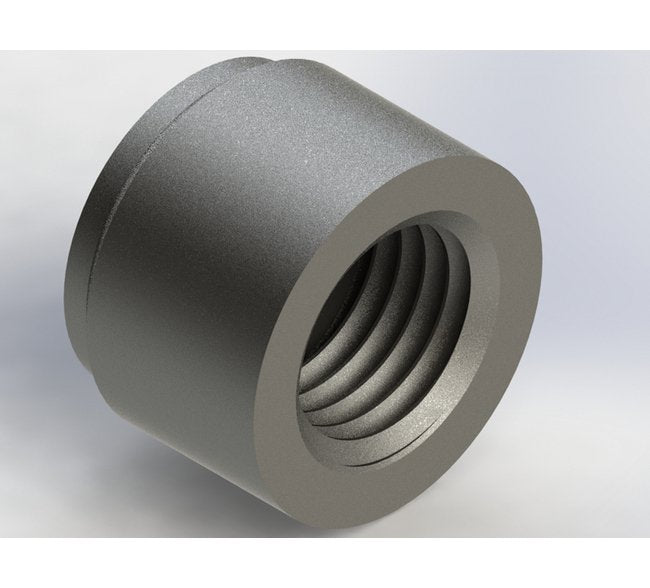

High-Precision Metal Orifices, 0.380" Press-Fit Inserts
High-Precision Metal Orifices, 0.380" Press-Fit Inserts
SKU:PRE-1df286
Achieve precise fluid control with our High-Precision Metal Orifices - perfect for fittings, manifolds, and custom assemblies.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High-Precision Metal Orifices, 0.380" Press-Fit Inserts
$39.99
Quantity: 1
Claim Your Seller Account
High-Precision Metal Orifices, 0.380" Press-Fit Inserts
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

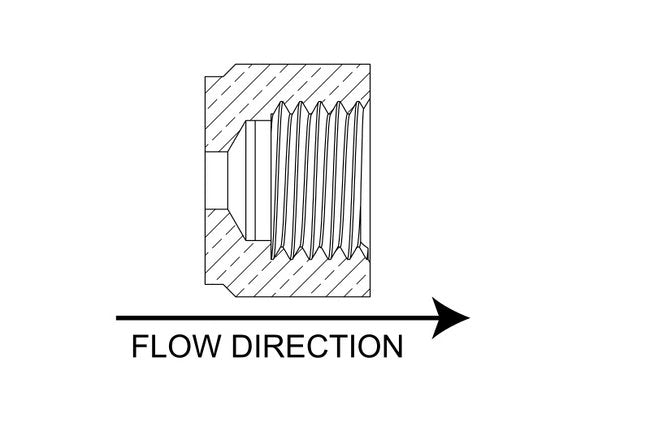

Enhance your fluid control systems with our High-Precision Metal Orifices. Designed for seamless press-fit installation in fittings, manifolds, and custom parts, these inserts guarantee precise flow rate control for liquids and gases. Crafted from durable 303 SS material, these orifices feature a 0.380" OD with an accuracy of ±0.0005 inches, ensuring optimal performance under pressures up to 4000 psig. Ideal for a wide range of applications, these orifices meet stringent industry standards for reliability and accuracy.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.0079 in | 0.2 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.36 | 5 psig: 0.85 | 10 psig: 1.21 | 15 psig: 1.53 | 20 psig: 1.80 | 25 psig: 2.08 | 30 psig: 2.37 | 40 psig: 2.92 | 50 psig: 3.50 | 60 psig: 4.05 | 70 psig: 4.60 | 80 psig: 5.15 | 90 psig: 5.70 | 100 psig: 6.25
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.170 | 5 psig (34.5 kPag): 0.40 | 10 psig (69.0 kPag): 0.57 | 15 psig (103.4 kPag): 0.72 | 20 psig (137.9 kPag): 0.85 | 25 psig (172.4 kPag): 0.98 | 30 psig (206.9 kPag): 1.12 | 40 psig (275.8 kPag): 1.38 | 50 psig (344.8 kPag): 1.65 | 60 psig (413.7 kPag): 1.91 | 70 psig (482.7 kPag): 2.17 | 80 psig (551.6 kPag): 2.43 | 90 psig (620.6 kPag): 2.69 | 100 psig (689.5 kPag): 2.95
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.744 | 20 In. Hg.: 0.744 | 30 In. Hg.: 0.744
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.351 | 20 In. Hg. (508 Mm. Hg.): 0.351 | 30 In. Hg. (762 Mm. Hg.): 0.351
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.536 | 10 In. Hg.: 0.687
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.253 | 10 In. Hg. (254 Mm. Hg.): 0.324
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0015 | 2 psig: 0.0021 | 3 psig: 0.0026 | 4 psig: 0.0030 | 5 psig: 0.0034 | 6 psig: 0.0037 | 7 psig: 0.0040 | 8 psig: 0.0042 | 9 psig: 0.0045 | 10 psig: 0.0047 | 15 psig: 0.0058 | 20 psig: 0.0067 | 30 psig: 0.0082 | 40 psig: 0.0095 | 50 psig: 0.0106 | 60 psig: 0.0116 | 70 psig: 0.0125 | 80 psig: 0.0134 | 90 psig: 0.0142 | 100 psig: 0.0150
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0057 | 2 psig (13.8 kPag): 0.0080 | 3 psig (20.7 kPag): 0.0098 | 4 psig (27.6 kPag): 0.0114 | 5 psig (34.5 kPag): 0.0127 | 6 psig (41.4 kPag): 0.0127 | 7 psig (48.3 kPag): 0.0150 | 8 psig (55.2 kPag): 0.0161 | 9 psig (62.1 kPag): 0.0170 | 10 psig (69 kPag): 0.0180 | 15 psig (103.4 kPag): 0.0220 | 20 psig (137.9 kPag): 0.0254 | 30 psig (206.9 kPag): 0.0311 | 40 psig (275.8 kPag): 0.0359 | 50 psig (344.8 kPag): 0.0402 | 60 psig (413.7 kPag): 0.0440 | 70 psig (482.7 kPag): 0.0475 | 80 psig (551.6 kPag): 0.0508 | 90 psig (620.6 kPag): 0.0539 | 100 psig (689.5 kPag): 0.0568
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.0015
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
8
Specifications Screened
None
