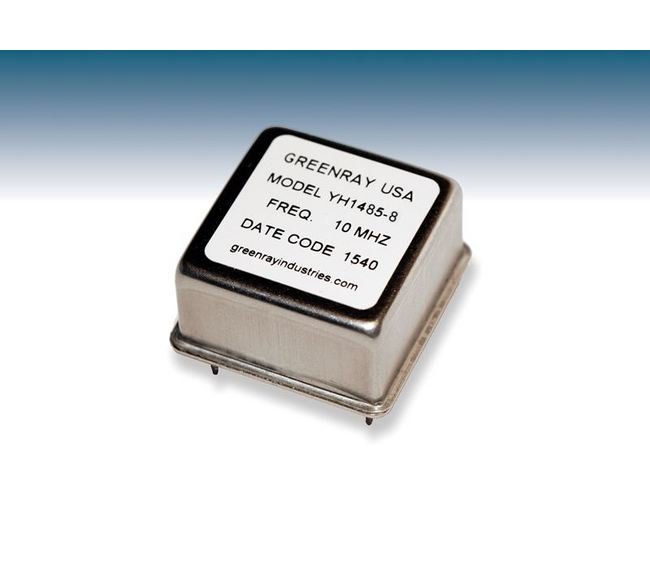

The High Precision OCXO 10-100MHz Crystal Oscillator is designed for exceptional stability and performance in demanding applications. With a compact DIP package and RoHS compliance, this oscillator offers a frequency range of 10-100 MHz with ACMOS output signal. It features low harmonics, precise symmetry, and minimal frequency variations against supply changes. This oscillator provides reliable operation with excellent temperature stability options, precise phase noise performance, and easy frequency adjustment, making it ideal for both consumer and institutional buyers.
Product Specifications
Phase Noise Performance 100 Hertz Hz Frequency Offset
-135 dBc/Hz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-158 dBc/Hz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-110 dBc/Hz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-158 dBc/Hz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-155 dBc/Hz
Phase Noise Performance Note For Phase Noise
Typical at 10 MHz
Specifications Aging
±2 x 10-9 per day after 30 days for 10 MHz Typical
Specifications Frequency Versus Supply
±3 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+3.3 V | +5 V
Specifications Input Power
Idle - <1.0 W Typical at +25 ºC | Warmup - <3 W for 5 minutes
Specifications Maximum Frequency
100 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
0 to Vsupply EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Note For Symmetry
Squarewave Version
Specifications Ordering Example
YH1420-N27-5 (Model-Stability-Input V)
Specifications Output
ACMOS | Squarewave

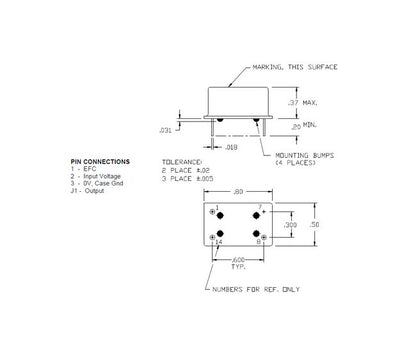

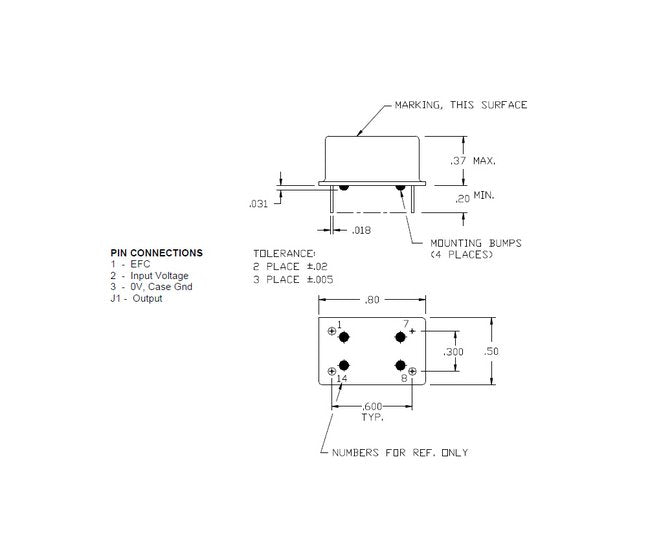

Specifications Pin Configuration
1 - EFC | 14 - Supply Voltage | 7 - 0 V/Gnd | 8 - Output
Specifications Positive Slope Frequency Adjust
±5.0 ppm
Specifications Symmetry
50 %
Specifications Symmetry Tolerance
±10 %
Temperature Stability Option G17
10 MHz Tolerance: ±1 x 10-7 | Temperature Range: -10 to +60 ºC
Temperature Stability Option N27
10 MHz Tolerance: ±2 x 10-7 | Temperature Range: -20 to +70 ºC
Temperature Stability Option T37
10 MHz Tolerance: ±3 x 10-7 | Temperature Range: -40 to +85 ºC
