High-Precision OCXO 10-30 MHz Crystal Oscillator
High-Precision OCXO 10-30 MHz Crystal Oscillator
SKU:OCX-abc6d6
Reliable High-Precision OCXO 10-30 MHz Crystal Oscillator for institutional and government applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
High-Precision OCXO 10-30 MHz Crystal Oscillator
$299.99
Quantity: 1
Claim Your Seller Account
High-Precision OCXO 10-30 MHz Crystal Oscillator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

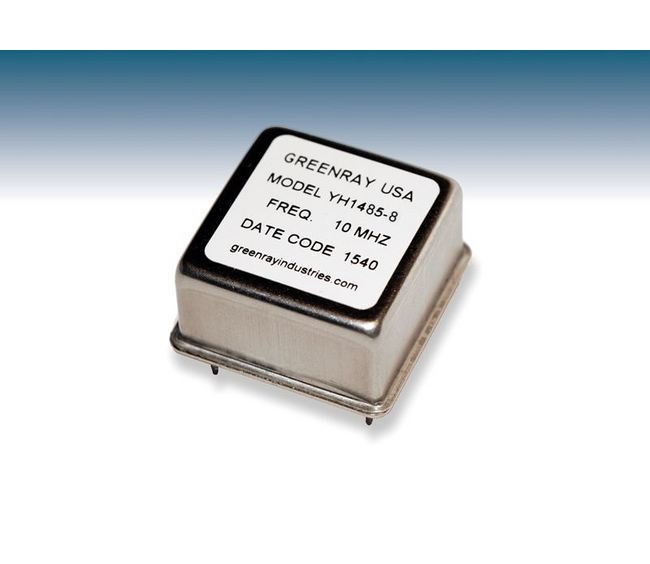

The High-Precision OCXO 10-30 MHz Crystal Oscillator in the OCXO series boasts a frequency range of 10-30 MHz with exceptional output signal quality. It features HCMOS square wave output, low harmonics, and precise frequency adjustments for institutional and government applications. With temperature stability options, excellent phase noise performance, and easy pin configuration, this OCXO meets stringent procurement standards and ensures reliable operation in demanding environments.
Product Specifications
Phase Noise Performance 100 Hertz Hz Frequency Offset
-135 dBc/Hz at 10 MHz AT | -140 dBc/Hz at 100 MHz SC
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-155 dBc/Hz at 10 MHz AT | -158 dBc/Hz at 100 MHz SC
Phase Noise Performance 10 Hertz Hz Frequency Offset
-105 dBc/Hz at 10 MHz AT | -125 dBc/Hz at 100 MHz SC
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-155 dBc/Hz at 10 MHz AT | -155 dBc/Hz at 100 MHz SC
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-150 dBc/Hz at 10 MHz AT | -150 dBc/Hz at 100 MHz SC
Phase Noise Performance Note For Phase Noise
Sine Typical
Specifications Aging For 1 Year At 10 Mhz
<1 x 10-7
Specifications Frequency Versus Supply
±5 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+12 V | ±5 V
Specifications Input Power
Idle - ⤠2.5 W at +25 ºC | Turn-on - ⤠6 W for 5 minutes
Specifications Maximum Frequency
30 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
+0.5 to +4.5 V EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Ordering Example
YH1311 - N38 - 5.0 - 10.0 MHz(Model-Stability-Input V-Frequency)
Specifications Output
HCMOS | Squarewave

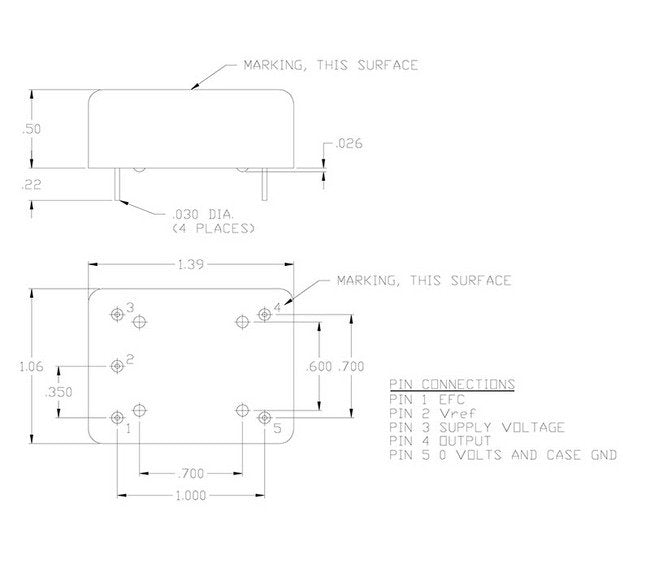

Specifications Pin Configuration
Pin 1 - EFC | Pin 2 - Vref | Pin 3 - Supply Voltage | Pin 4 - Output | Pin 5 - 0 V and Case Gnd
Specifications Positive Slope Frequency Adjust
±1.0 ppm
Specifications Symmetry
50 %
Specifications Symmetry Tolerance
±10 %
Specifications Tolerance For Input Direct Current Dc Voltage
±5 %
Specifications Warm Up Time
Within ± 5 x 10-8 in 5 minutes, ref to 60 minute frequency at +25 ºC
Temperature Stability Model T58
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-8
Temperature Stability Option B17
Temperature Range: 0 to +50 ºC | Tolerance: ±1 x 10-7
Temperature Stability Option B28
Temperature Range: 0 to +50 ºC | Tolerance: ±2 x 10-8
Temperature Stability Option N27
Temperature Range: -20 to +70 ºC | Tolerance: ±2 x 10-7
Temperature Stability Option N38
Temperature Range: -20 to +70 ºC | Tolerance: ±3 x 10-8
Temperature Stability Option T57
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-7
