High-Precision OCXO 10-30MHz Frequency Crystal Oscillator
High-Precision OCXO 10-30MHz Frequency Crystal Oscillator
SKU:OCX-cc8390
Get unmatched frequency stability with our High-Precision Crystal Oscillator. Ideal for critical applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Precision OCXO 10-30MHz Frequency Crystal Oscillator
$129.99
Quantity: 1
Claim Your Seller Account
High-Precision OCXO 10-30MHz Frequency Crystal Oscillator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

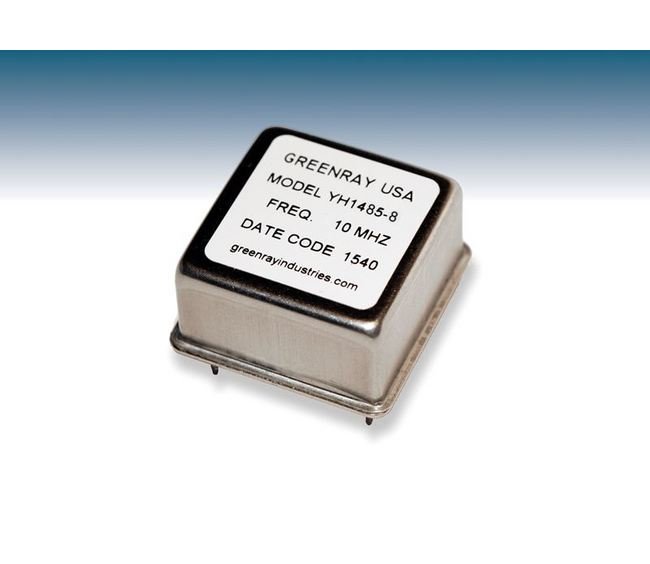

Experience unparalleled frequency stability with our High-Precision OCXO 10-30MHz Frequency Crystal Oscillator. This standard Euro package, hermetically sealed oscillator offers a frequency range of 10-30 MHz with a sinewave output signal. With exceptional attributes like low harmonics, precise symmetry, and quick warm-up time, this oscillator ensures reliable performance in demanding applications. Its temperature stability options and superior phase noise performance make it ideal for both consumer and institutional buyers seeking top-notch precision.
Product Specifications
Phase Noise Performance 100 Hertz Hz Frequency Offset
-135 dBc/Hz at 10 MHz AT | -140 dBc/Hz at 100 MHz SC
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-155 dBc/Hz at 10 MHz AT | -158 dBc/Hz at 100 MHz SC
Phase Noise Performance 10 Hertz Hz Frequency Offset
-105 dBc/Hz at 10 MHz AT | -125 dBc/Hz at 100 MHz SC
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-155 dBc/Hz at 10 MHz AT | -155 dBc/Hz at 100 MHz SC
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-150 dBc/Hz at 10 MHz AT | -150 dBc/Hz at 100 MHz SC
Phase Noise Performance Note For Phase Noise
Sine Typical
Specifications Aging For 1 Year At 10 Mhz
<1 x 10-7
Specifications Frequency Versus Supply
±5 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+12 V | ±5 V
Specifications Input Power
Idle - ⤠2.5 W at +25 ºC | Turn-on - ⤠6 W for 5 minutes
Specifications Maximum Frequency
30 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
+0.5 to +4.5 V EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Ordering Example
YH1310 - N38 - 5.0 - 10.0 MHz(Model-Stability-Input V-Frequency)
Specifications Output
+5 dBm minimum into 50 ohms | Sinewave
Specifications Pin Configuration

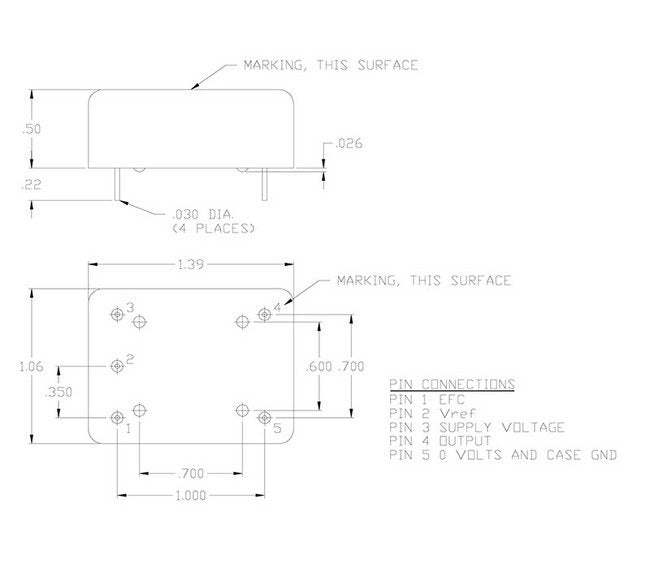

Pin 1 - EFC | Pin 2 - Vref | Pin 3 - Supply Voltage | Pin 4 - Output | Pin 5 - 0 V and Case Gnd
Specifications Positive Slope Frequency Adjust
±1.0 ppm
Specifications Symmetry
50 %
Specifications Symmetry Tolerance
±10 %
Specifications Tolerance For Input Direct Current Dc Voltage
±5 %
Specifications Warm Up Time
Within ± 5 x 10-8 in 5 minutes, ref to 60 minute frequency at +25 ºC
Temperature Stability Model T58
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-8
Temperature Stability Option B17
Temperature Range: 0 to +50 ºC | Tolerance: ±1 x 10-7
Temperature Stability Option B28
Temperature Range: 0 to +50 ºC | Tolerance: ±2 x 10-8
Temperature Stability Option N27
Temperature Range: -20 to +70 ºC | Tolerance: ±2 x 10-7
Temperature Stability Option N38
Temperature Range: -20 to +70 ºC | Tolerance: ±3 x 10-8
Temperature Stability Option T57
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-7
