High-Precision OCXO Crystal Oscillator - 10-100 MHz
High-Precision OCXO Crystal Oscillator - 10-100 MHz
SKU:OCX-c2dca4
Experience exceptional precision and stability with our High-Precision OCXO Crystal Oscillator. Ideal for critical applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
High-Precision OCXO Crystal Oscillator - 10-100 MHz
$299.99
Quantity: 1
Claim Your Seller Account
High-Precision OCXO Crystal Oscillator - 10-100 MHz
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

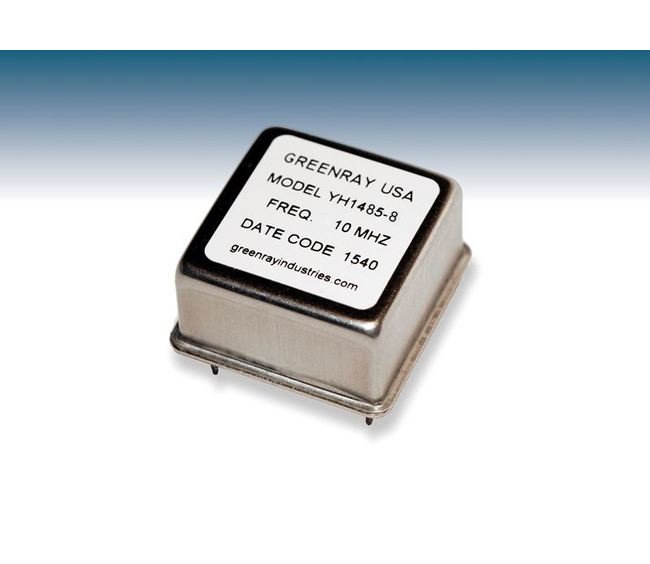

The High-Precision OCXO Crystal Oscillator in the 10-100 MHz range is a top-tier solution for applications requiring exceptional stability and accuracy. With a compact DIP package design, RoHS compliance, and outputting a sine wave signal, this oscillator excels in performance and reliability. It features low harmonics, precise symmetry, excellent frequency adjustment capabilities, and superior temperature stability options for diverse operating conditions. Ideal for demanding environments where precision is paramount, this crystal oscillator sets the standard for reliability and accuracy.
Product Specifications
Phase Noise Performance 100 Hertz Hz Frequency Offset
-135 dBc/Hz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-158 dBc/Hz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-110 dBc/Hz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-158 dBc/Hz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-155 dBc/Hz
Phase Noise Performance Note For Phase Noise
Typical at 10 MHz
Specifications Aging
±2 x 10-9 per day after 30 days for 10 MHz Typical
Specifications Frequency Versus Supply
±3 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+3.3 V | +5 V
Specifications Input Power
Idle - <1.0 W Typical at +25 ºC | Warmup - <3 W for 5 minutes
Specifications Maximum Frequency
100 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
0 to Vsupply EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Note For Symmetry
Squarewave Version
Specifications Ordering Example
YH1420-N27-5 (Model-Stability-Input V)
Specifications Output
0 dBm minimum into 50 ohms | Sinewave

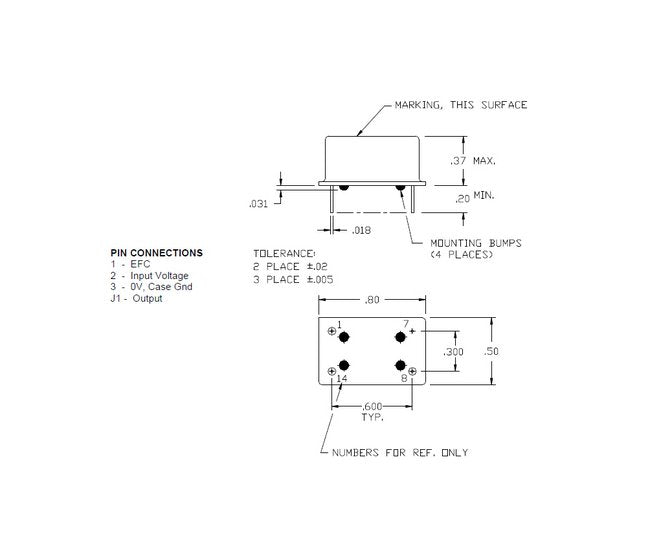

Specifications Pin Configuration
1 - EFC | 14 - Supply Voltage | 7 - 0 V/Gnd | 8 - Output
Specifications Positive Slope Frequency Adjust
±5.0 ppm
Specifications Symmetry
50 %
Specifications Symmetry Tolerance
±10 %
Temperature Stability Option G17
10 MHz Tolerance: ±1 x 10-7 | Temperature Range: -10 to +60 ºC
Temperature Stability Option N27
10 MHz Tolerance: ±2 x 10-7 | Temperature Range: -20 to +70 ºC
Temperature Stability Option T37
10 MHz Tolerance: ±3 x 10-7 | Temperature Range: -40 to +85 ºC
