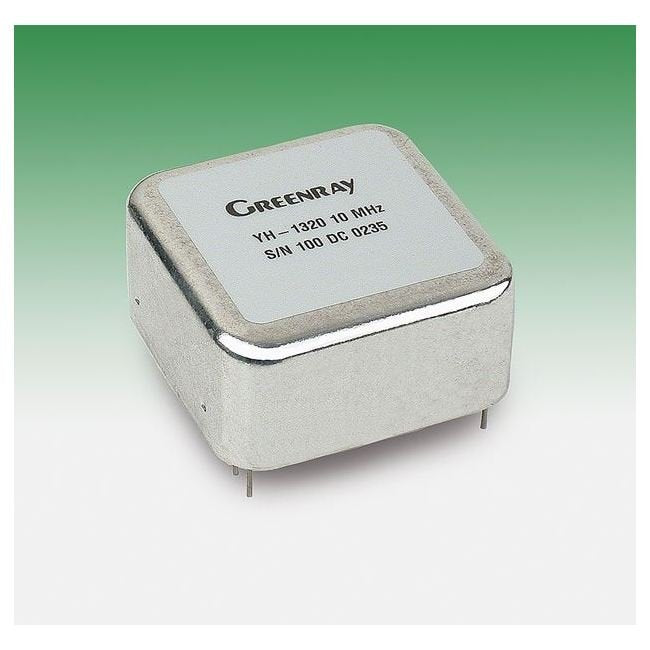

High Precision OCXO Crystal Oscillator - 10-120 MHz Frequency Range
High Precision OCXO Crystal Oscillator - 10-120 MHz Frequency Range
SKU:OCX-69d300
High Precision OCXO Crystal Oscillator with 10-120 MHz frequency range, exceptional stability, and low phase noise performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
High Precision OCXO Crystal Oscillator - 10-120 MHz Frequency Range
$399.99
Quantity: 1
Claim Your Seller Account
High Precision OCXO Crystal Oscillator - 10-120 MHz Frequency Range
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Precision OCXO Crystal Oscillator offers exceptional stability and low phase noise performance, making it ideal for critical frequency control applications. With a frequency range of 10-120 MHz and precise output signal characteristics, this oscillator ensures reliable performance in demanding environments. Featuring temperature stability options and superior phase noise performance, it meets stringent industry standards for accuracy and reliability.
Product Specifications
Environmental And Mechanical Specifications Shock
Per MIL-STD-202, Method 213, Condition C
Environmental And Mechanical Specifications Vibration
Per MIL-STD-202, Method 204, Condition A
Phase Noise Performance 100 Hertz Hz Frequency Offset
-115 dBc/Hz at 100 MHz Standard | -120 dBc/Hz at 100 MHz Ultra-Low | -150 dBc/Hz at 10 MHz Standard | -155 dBc/Hz at 10 MHz Ultra-Low
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-165 dBc/Hz at 10 MHz Standard | -165 dBc/Hz at 100 MHz Standard | -168 dBc/Hz at 10 MHz Ultra-Low | -168 dBc/Hz at 100 MHz Ultra-Low
Phase Noise Performance 10 Hertz Hz Frequency Offset
-125 dBc/Hz at 10 MHz Standard | -128 dBc/Hz at 10 MHz Ultra-Low | -85 dBc/Hz at 100 MHz Standard | -90 dBc/Hz at 100 MHz Ultra-Low
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-160 dBc/Hz at 100 MHz Standard | -165 dBc/Hz at 10 MHz Standard | -165 dBc/Hz at 100 MHz Ultra-Low | -168 dBc/Hz at 10 MHz Ultra-Low
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-145 dBc/Hz at 100 MHz Standard | -150 dBc/Hz at 100 MHz Ultra-Low | -160 dBc/Hz at 10 MHz Standard | -163 dBc/Hz at 10 MHz Ultra-Low
Phase Noise Performance Note For Phase Noise
Sine Max
Specifications Aging For 1 Year At 100 Mhz
±5 x 10-7
Specifications Aging For 1 Year At 10 Mhz
±1 x 10-7
Specifications Frequency Versus Supply
±5 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+12 V
Specifications Input Power
Idle - ⤠2.5 W at +25 ºC | Turn-on - ⤠6 W for 5 minutes
Specifications Maximum Frequency
120 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
+0.5 to +5.0 V EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Ordering Example
YH1320 - N28 - UL - 10.0 MHz(Model-Stability-Phase Noise Opt-Frequency)
Specifications Output
HCMOS | Squarewave
Specifications Pin Configuration

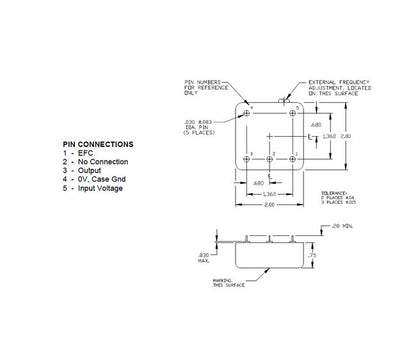

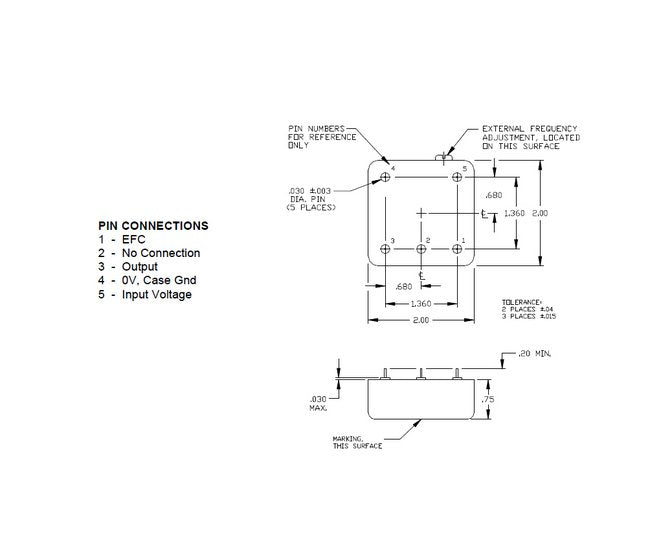

1 - EFC | 2 - No Connection | 3 - Output | 4 - 0 V and Case Gnd | 5 - Input Voltage
Specifications Positive Slope Frequency Adjust
±1.0 ppm
Specifications Tolerance For Input Direct Current Dc Voltage
±5 %
Specifications Warm Up Time
Within ± 5 x 10-8 in 5 minutes, ref to 60 minute frequency at +25 ºC
Temperature Stability Model B18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model B58
100 MHz Tolerance: ±5 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model G158
10 MHz Tolerance: ±1.5 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Model G78
100 MHz Tolerance: ±7 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Model N17
100 MHz Tolerance: ±1 x 10-7 | Temperature Range: -20 to +70 ºC
Temperature Stability Model N28
10 MHz Tolerance: ±2 x 10-8 | Temperature Range: -20 to +70 ºC
Temperature Stability Model T37
100 MHz Tolerance: ±3 x 10-7 | Temperature Range: -40 to +85 ºC
Temperature Stability Model T58
10 MHz Tolerance: ±5 x 10-8 | Temperature Range: -40 to +85 ºC
