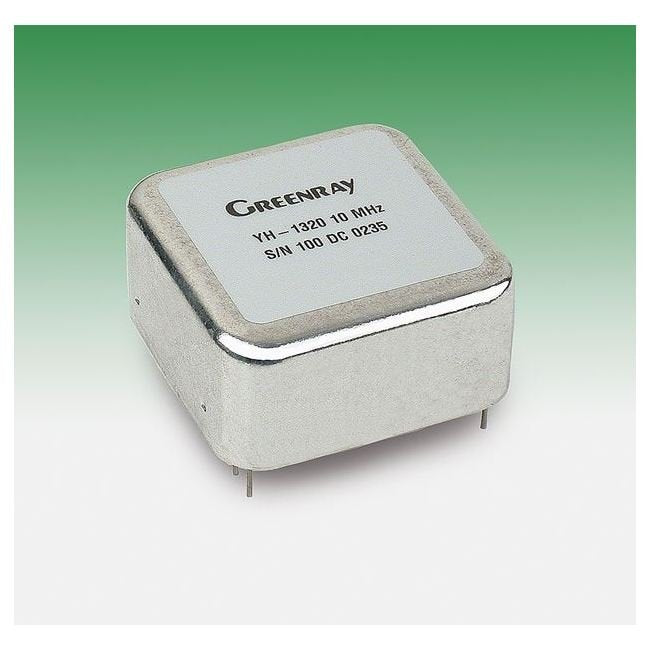

Experience unparalleled frequency stability and low phase noise with our OCXO 10 to 120 MHz Oven-Controlled Crystal Oscillator. With tight harmonics control, precise temperature stability across a wide range, and industry-leading phase noise performance, this oscillator meets the most stringent institutional procurement standards. Its compact design and robust construction make it ideal for demanding applications in both consumer and government sectors.
Product Specifications
Environmental And Mechanical Specifications Shock
Per MIL-STD-202, Method 213, Condition C
Environmental And Mechanical Specifications Vibration
Per MIL-STD-202, Method 204, Condition A
Phase Noise Performance 100 Hertz Hz Frequency Offset
-115 dBc/Hz at 100 MHz Standard | -120 dBc/Hz at 100 MHz Ultra-Low | -150 dBc/Hz at 10 MHz Standard | -155 dBc/Hz at 10 MHz Ultra-Low
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-165 dBc/Hz at 10 MHz Standard | -165 dBc/Hz at 100 MHz Standard | -168 dBc/Hz at 10 MHz Ultra-Low | -168 dBc/Hz at 100 MHz Ultra-Low
Phase Noise Performance 10 Hertz Hz Frequency Offset
-125 dBc/Hz at 10 MHz Standard | -128 dBc/Hz at 10 MHz Ultra-Low | -85 dBc/Hz at 100 MHz Standard | -90 dBc/Hz at 100 MHz Ultra-Low
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-160 dBc/Hz at 100 MHz Standard | -165 dBc/Hz at 10 MHz Standard | -165 dBc/Hz at 100 MHz Ultra-Low | -168 dBc/Hz at 10 MHz Ultra-Low
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-145 dBc/Hz at 100 MHz Standard | -150 dBc/Hz at 100 MHz Ultra-Low | -160 dBc/Hz at 10 MHz Standard | -163 dBc/Hz at 10 MHz Ultra-Low
Phase Noise Performance Note For Phase Noise
Sine Max
Specifications Aging For 1 Year At 100 Mhz
±5 x 10-7
Specifications Aging For 1 Year At 10 Mhz
±1 x 10-7
Specifications Frequency Versus Supply
±5 x 10-9 for a 5% Change
Specifications Harmonics
-20 dBc
Specifications Input Direct Current Dc Voltage
+12 V
Specifications Input Power
Idle - ⤠2.5 W at +25 ºC | Turn-on - ⤠6 W for 5 minutes
Specifications Maximum Frequency
120 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
+0.5 to +5.0 V EFC
Specifications Note For Harmonics
Sinewave Version
Specifications Ordering Example
YH1321 - N28 - UL - 10.0 MHz(Model-Stability-Phase Noise Opt-Frequency)
Specifications Output
+10 dBm minimum into 50 ohms | Sinewave

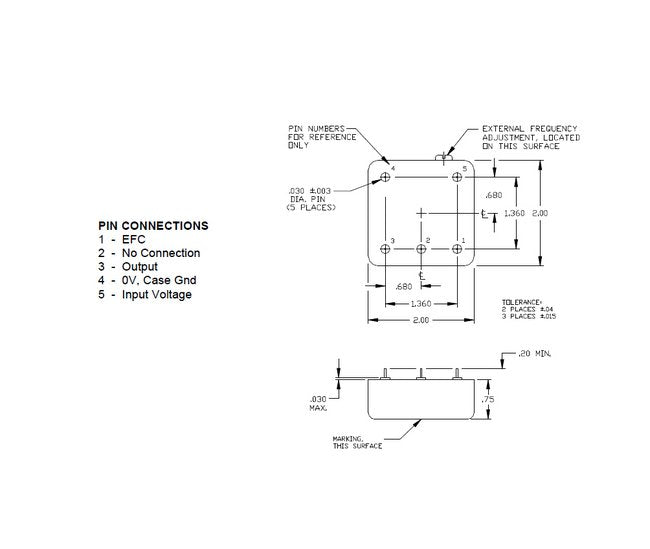

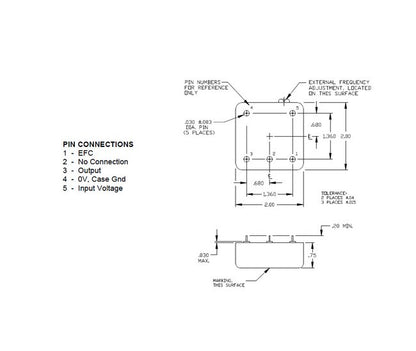

Specifications Pin Configuration
1 - EFC | 2 - No Connection | 3 - Output | 4 - 0 V and Case Gnd | 5 - Input Voltage
Specifications Positive Slope Frequency Adjust
±1.0 ppm
Specifications Tolerance For Input Direct Current Dc Voltage
±5 %
Specifications Warm Up Time
Within ± 5 x 10-8 in 5 minutes, ref to 60 minute frequency at +25 ºC
Temperature Stability Model B18
10 MHz Tolerance: ±1 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model B58
100 MHz Tolerance: ±5 x 10-8 | Temperature Range: 0 to +50 ºC
Temperature Stability Model G158
10 MHz Tolerance: ±1.5 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Model G78
100 MHz Tolerance: ±7 x 10-8 | Temperature Range: -10 to +60 ºC
Temperature Stability Model N17
100 MHz Tolerance: ±1 x 10-7 | Temperature Range: -20 to +70 ºC
Temperature Stability Model N28
10 MHz Tolerance: ±2 x 10-8 | Temperature Range: -20 to +70 ºC
Temperature Stability Model T37
100 MHz Tolerance: ±3 x 10-7 | Temperature Range: -40 to +85 ºC
Temperature Stability Model T58
10 MHz Tolerance: ±5 x 10-8 | Temperature Range: -40 to +85 ºC
