High-Precision Thin-Film Platinum RTD Temperature Sensor P1K0.232.6W.Y.010
High-Precision Thin-Film Platinum RTD Temperature Sensor P1K0.232.6W.Y.010
SKU:TEM-b90700
Top-quality High-Precision Platinum RTD Sensor for accurate temperature readings in -200 to +600 ºC range. RoHS-compliant, ideal for industrial use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Precision Thin-Film Platinum RTD Temperature Sensor P1K0.232.6W.Y.010
$49.99
Quantity: 1
Claim Your Seller Account
High-Precision Thin-Film Platinum RTD Temperature Sensor P1K0.232.6W.Y.010
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

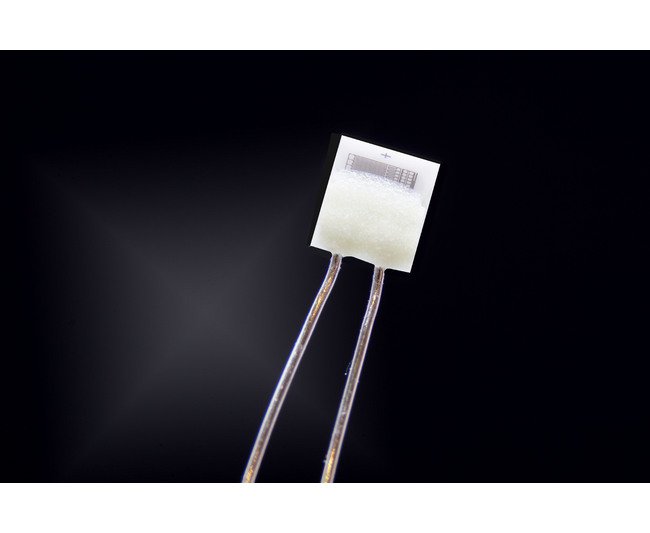

The High-Precision Thin-Film Platinum RTD Temperature Sensor P1K0.232.6W.Y.010 is a top-quality component designed for precise temperature measurements in a wide range of -200 to +600 ºC. Manufactured by Innovative Sensor Technology, USA Division, it boasts RoHS compliance, 1000 Ohm resistivity, and a 3850 ppm/K temperature coefficient of resistance. With a platinum/nickel wire type and dimensions of 2.3mm x 2.0mm x 1.3mm, this sensor ensures accuracy and reliability in demanding industrial and institutional applications.
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
2.3 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P1K0.232.6W.Y.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
1/3 International Electrotechnical Commission (IEC) 60751 F0.1 (Class Y)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
