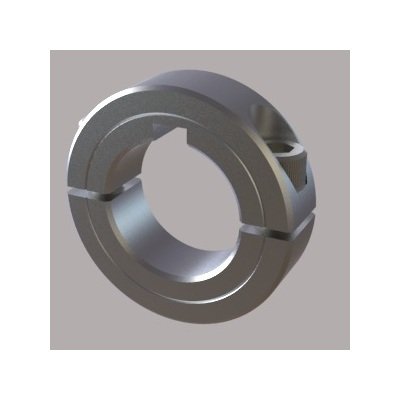

High Precision Two-Piece Split Clamp-Type Shaft Collars with Keyways
High Precision Two-Piece Split Clamp-Type Shaft Collars with Keyways
SKU:ROU-5eaab1
High Precision Split Shaft Collars with Keyways, Easy Adjustment, Superior Clamping Power
Regular price
$20.35
Regular price
Sale price
$20.35
Unit price
per
Initiate Order
High Precision Two-Piece Split Clamp-Type Shaft Collars with Keyways
$20.35
Quantity: 1
Claim Your Seller Account
High Precision Two-Piece Split Clamp-Type Shaft Collars with Keyways
$20.35
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Precision Two-Piece Split Clamp-Type Shaft Collars with Keyways are engineered for versatile shaft applications, providing exceptional holding power and precise adjustment capabilities. Crafted from chrome-plated steel alloy, these collars offer superior protection to shafts, with options in Low Profile and Heavy Duty styles for various needs. Easily disassembled and repositionable, these collars ensure non-marring installation and high clamping power, accommodating standard round shafts, thin-wall tubes, or split hubs. Choose the Low Profile style for protruding clamp screws or opt for the Heavy Duty style for double the holding power with a larger OD.
Product Specifications
Dimensional Attributes Bore Size
3/4 in
Dimensional Attributes Keyway
3/16 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.15 lb
Specifications Country Of Origin
USA
Specifications Finish
Chrome-Plated
Specifications List Price
20.35 USD
Specifications Material
Steel, Chrome-Plated
Specifications Part Number
8L012KP11
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786038365
