High Precision Universal Load Cell Base 9.5in
High Precision Universal Load Cell Base 9.5in
SKU:LOA-f53a4d
Reliable Universal Load Cell Base for accurate weight measurements, ideal for diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Precision Universal Load Cell Base 9.5in
$49.99
Quantity: 1
Claim Your Seller Account
High Precision Universal Load Cell Base 9.5in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

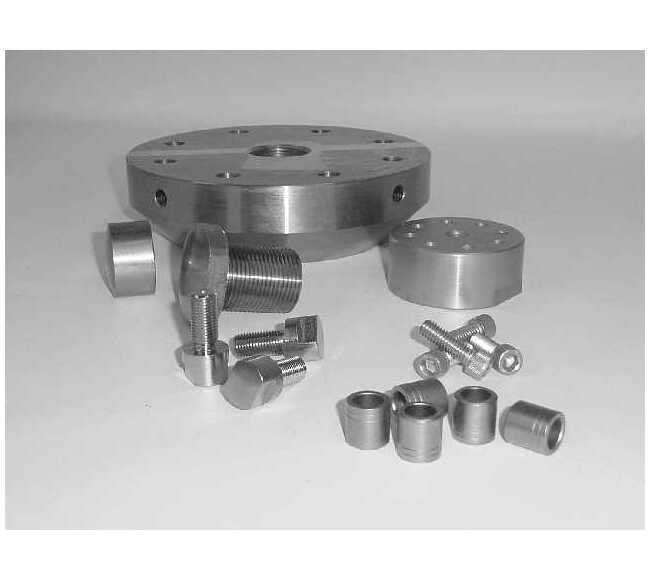

The High Precision Universal Load Cell Base with a diameter of 9-1/2 inches and a robust construction is designed to meet the demanding needs of both consumers and institutional buyers. With a sturdy design featuring 8 holes for secure mounting, this base ensures accurate load cell installation. Its dimensions adhere to industry standards, making it compatible with various load cells for precise weight measurements in diverse applications. Trust in the reliability and durability of this base to deliver consistent and accurate results, meeting the stringent requirements of governmental and institutional procurement standards.
Product Specifications

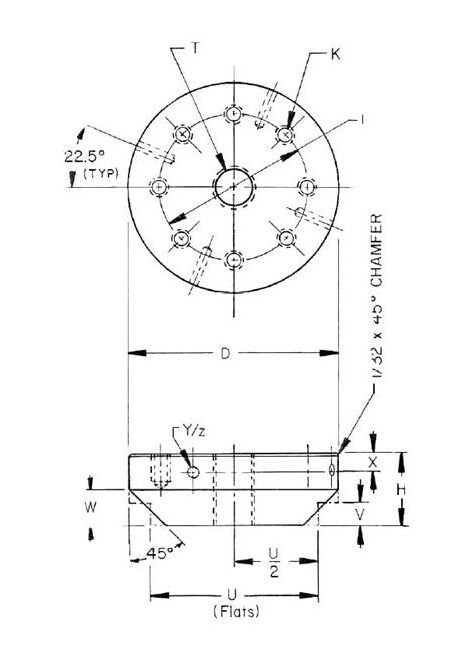

Dimensional Drawing Dimensional Drawing
Universal Load Cell Accessories
Specifications D Diameter
9-1/2 in
Specifications H Height
3 in
Specifications K Hole
3/4-16UNF-2B, 7/8â Deep
Specifications L Diameter
7-1/4 in
Specifications Number Of Holes
8
Specifications T Hole
2-12UN-2B
Specifications U Flats
0 in
Specifications V Height
0 in
Specifications W Height
1-1/2 in
Specifications X Length
3/4 in
Specifications Y Diameter
1/2 in
Specifications Z Depth
2 in
