High-Pressure 1/2 Inch Multi-Port Needle Valve
High-Pressure 1/2 Inch Multi-Port Needle Valve
SKU:MUL-a17657
Efficiently control up to 6000 psi with our high-grade 1/2 Inch Multi-Port Needle Valve, ASME B1.20.1 compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High-Pressure 1/2 Inch Multi-Port Needle Valve
$59.99
Quantity: 1
Claim Your Seller Account
High-Pressure 1/2 Inch Multi-Port Needle Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

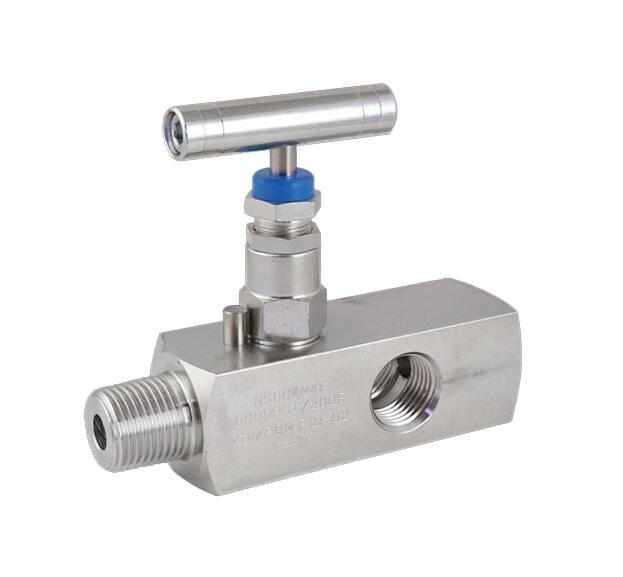

Experience superior control and durability with our High-Pressure 1/2 Inch Multi-Port Needle Valve. Crafted from high-grade carbon material, this valve ensures reliable performance up to 6000 psi pressure. The PolyOxyMethylene soft seat provides a tight seal, meeting industry standards including ASME B1.20.1 and NACE compliance. With precise dimensions and ASME B1.20.1 threaded design, this valve guarantees efficiency and longevity in demanding applications.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1

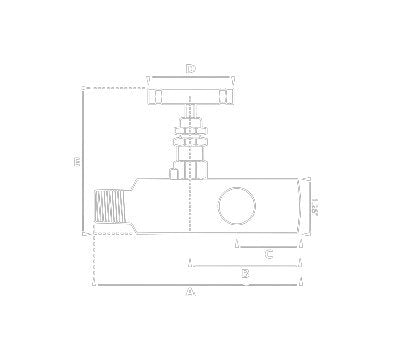

Technical Specs Dimension A
4.45 in
Technical Specs Dimension B
2.5 in
Technical Specs Dimension C
1.42 in
Technical Specs Dimension D
2.4 in
Technical Specs Dimension E
3.54 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Carbon
Technical Specs Seat Material
PolyOxyMethylene (POM) Soft Seat
Technical Specs Thread Size
1/2 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
6000 psi
