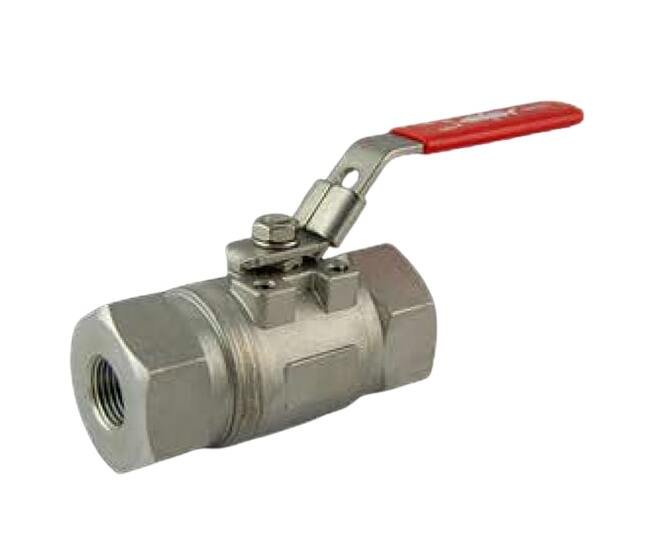

High-Pressure 1/4in NPT Two Piece Ball Valve - 10000S Series
High-Pressure 1/4in NPT Two Piece Ball Valve - 10000S Series
SKU:100-3683d1
High-pressure 1/4in NPT ball valve for up to 10000 psi, ASME B16.34 Class 4500 compliant, with floating ball design & locking lever handle.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Pressure 1/4in NPT Two Piece Ball Valve - 10000S Series
$129.99
Quantity: 1
Claim Your Seller Account
High-Pressure 1/4in NPT Two Piece Ball Valve - 10000S Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 10000S Series Class 4500 National Pipe Thread (NPT) Threaded Two Piece Ball Valve is designed for high-pressure applications up to 10000 psi. With a full port for optimal flow, this valve features wall thickness compliant with ASME B16.34 Class 4500 standards, a floating ball design, ISO 5211 Mounting Pad, Locking Lever Handle, Seal Welded construction, and pressure testing to API 598. Weighing 2.12 kg, it meets industry standards including ASME B16.34, ISO 5211, and NACE MR-0175 for corrosion resistance.
Product Specifications
Features Features
Wall Thickness - ASME B16.34 Class 4500Floating BallISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.25 in
Technical Specs Dimension B
3.54 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.63 in
Technical Specs Dimension F
1.06 in
Technical Specs Dimension G
0.15 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
10
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
100 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1/4 in
Technical Specs Pressure Rating
10000 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
2.12 kg
