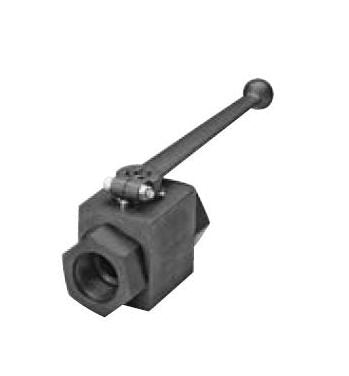

High-Pressure 2-Way Ball Valve, 1/4" - 2"
High-Pressure 2-Way Ball Valve, 1/4" - 2"
SKU:ACC-d1f5f7
Premium High-Pressure 2-Way Ball Valve for efficient industrial flow control. Carbon Steel/Stainless Steel, 7250 psi, -40 °F to 392 °F option. Reliable performance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valve, 1/4" - 2"
$149.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valve, 1/4" - 2"
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience premium performance with our High-Pressure 2-Way Ball Valve, available in sizes ranging from 1/4" to 2". Made from durable Carbon Steel or Stainless Steel, this valve operates at pressures up to 7250 psi and temperatures from 14 °F to 176 °F, with customized options for extreme conditions. The valve's full port design ensures optimal flow and efficiency, while the carbon steel housing and polyacetal ball seal guarantee longevity and reliability, making it ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Connection Size
1-5/16-12 UN
Dimensions Diameter D
0.98 in | 25 mm
Dimensions Dimension A
7.88 in | 200 mm
Dimensions Dimension B
2.24 in | 57 mm
Dimensions Dimension H
3.23 in | 82 mm
Dimensions Dimension H1
2.52 in | 64 mm
Dimensions Dimension H2
0.43 in | 11 mm
Dimensions Dimension H3
1.12 in | 28.5 mm
Dimensions Dimension H4
2.40 in | 61 mm
Dimensions Dimension L
4.45 in | 113 mm
Dimensions Dimension Sq
0.55 in | 14 mm
Dimensions Tube Size
-16
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard

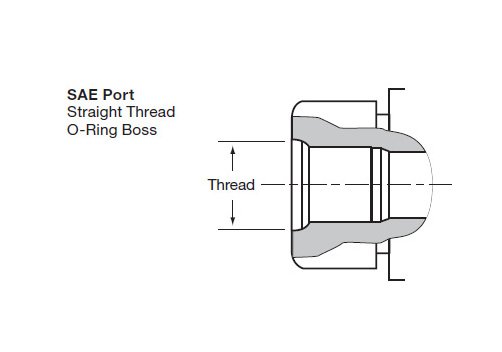

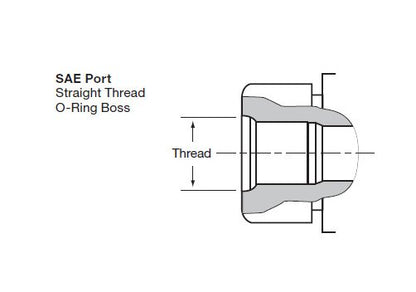

SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Nitrile Rubber (NBR) (Buna-N)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-25SAE-1112-16X-A
Specifications Nominal Size
25
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
Handle
Specifications Valve Size
25
