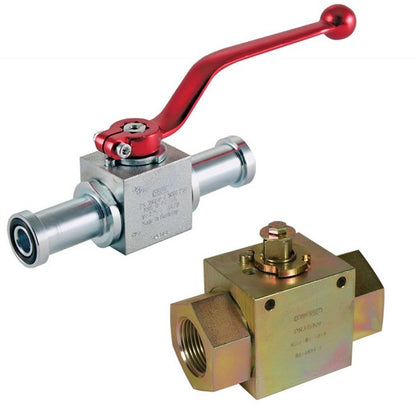

High Pressure 2-Way Ball Valve
High Pressure 2-Way Ball Valve
SKU:ACC-849c0a
Enhance operations with high pressure and durable High Pressure 2-Way Ball Valve.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve
$199.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial operations with our High Pressure 2-Way Ball Valve. This valve features a Full Port Design with Carbon Steel or Stainless Steel Housings, ensuring durability and reliability. Operating at pressures up to 6000 psi, this valve is suitable for a wide range of applications. With a temperature range of 14°F to 176°F, it meets standard material requirements. Additionally, it boasts a forged housing, zinc plating for enhanced durability, and a chrome-plated ball for smooth operation. The included handle with a locking device option ensures secure usage. Experience superior performance with our High Pressure 2-Way Ball Valve.
Product Specifications
Dimensions Connection Size
F6
Dimensions Diameter D
1.50 in | 38 mm
Dimensions Diameter D1
2.50 in | 63.5 mm
Dimensions Diameter D2
2.01 in | 51 mm
Dimensions Dimension A
12.01 in | 305 mm
Dimensions Dimension B
3.35 in | 85 mm
Dimensions Dimension C
0.50 in | 12.6 mm
Dimensions Dimension H
4.49 in | 114 mm
Dimensions Dimension H1
3.78 in | 96 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
1.67 in | 42.5 mm
Dimensions Dimension H4
6.18 in | 157 mm
Dimensions Dimension L
11.06 in | 281 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Nominal Flange Size
1-1/2 in
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard
High Pressure Series, Code 62 SAE J518 Four Bolt Split Flange Type
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flange Dash Size
-24
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Locking Device Option
Locking Device with 5 amp Limit Switch, Available for sizes 20-50 (Not available with PTFE Spindle Seals)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Material Split Flange
Without Split Flanges
Specifications Model Code Description
KHM-40F6-1114X-16X-A-LS
Specifications Mounting Type
Flange
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Valve Size
40
