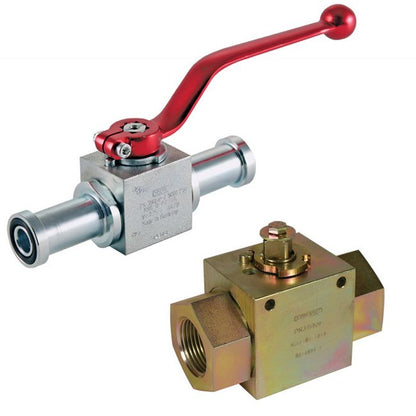

High Pressure 2-Way Ball Valve
High Pressure 2-Way Ball Valve
SKU:ACC-8535a5
Durable High Pressure 2-Way Ball Valve for optimal flow control in industrial applications. Operates up to 6000 psi with temperature range 14 °F to 176 °F.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve
$199.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure 2-Way Ball Valve is a durable and efficient solution for a wide range of industrial applications. Available in sizes ranging from 1/2" to 2", with carbon steel or stainless steel housings, this valve offers a full port design for optimal flow control. With an operating pressure of up to 6000 psi and a temperature range from 14 °F to 176 °F (extended range available on request), this valve is versatile and reliable. The valve features a forged housing, chrome-plated ball, and zinc-plated components for enhanced durability. The handle operator ensures easy manipulation, making it perfect for high-pressure systems.
Product Specifications
Dimensions Connection Size
F3
Dimensions Diameter D
1.89 in | 48 mm
Dimensions Diameter D1
2.81 in | 71.4 mm
Dimensions Diameter D2
2.44 in | 62 mm
Dimensions Dimension A
12.01 in | 305 mm
Dimensions Dimension B
4.13 in | 105 mm
Dimensions Dimension C
0.38 in | 9.6 mm
Dimensions Dimension H
5.18 in | 131.5 mm
Dimensions Dimension H1
4.43 in | 112.5 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
2.07 in | 52.5 mm
Dimensions Dimension H4
6.46 in | 164 mm
Dimensions Dimension L
9.21 in | 234 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Nominal Flange Size
2 in
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard
Standard Pressure Series, Code 61 SAE J518 Four Bolt Split Flange Type
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flange Dash Size
-32
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Locking Device Option
Locking Device
Specifications Material Ball Seal
Polytetrafluoroethylene (PTFE) (1500 psi Max)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Material Split Flange
Without Split Flanges
Specifications Model Code Description
KHM-50F3-1134X-16X-A-L
Specifications Mounting Type
Flange
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
3000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Valve Size
50
