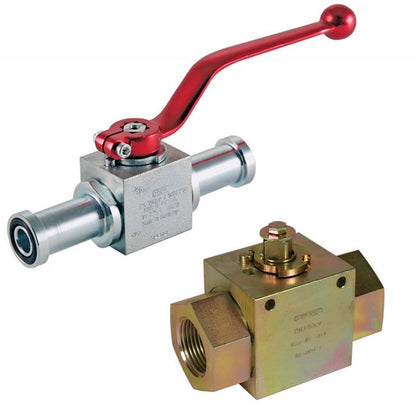

High Pressure 2-Way Ball Valve
High Pressure 2-Way Ball Valve
SKU:ACC-6b498d
Dependable High Pressure 2-Way Ball Valve for precision flow control in extreme conditions, ensuring durability and performance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve
$189.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure 2-Way Ball Valve is a reliable solution for demanding applications, featuring a full port design in carbon steel or stainless steel housings. With an operating pressure of up to 6000 psi and a temperature range from 14°F to 176°F, this valve ensures optimal performance and durability. The forged housing and chrome plated ball provide enhanced longevity and efficient flow control, making it ideal for high-pressure environments. Suitable for a range of industries, this valve guarantees precision and reliability in critical operations.
Product Specifications
Dimensions Connection Size
F6
Dimensions Diameter D
1.89 in | 48 mm
Dimensions Diameter D1
3.13 in | 79.4 mm
Dimensions Diameter D2
2.64 in | 67 mm
Dimensions Dimension A
12.01 in | 305 mm
Dimensions Dimension B
4.13 in | 105 mm
Dimensions Dimension C
0.50 in | 12.6 mm
Dimensions Dimension H
5.18 in | 131.5 mm
Dimensions Dimension H1
4.43 in | 112.5 mm
Dimensions Dimension H2
0.47 in | 12 mm
Dimensions Dimension H3
2.07 in | 52.5 mm
Dimensions Dimension H4
6.46 in | 164 mm
Dimensions Dimension L
12.4 in | 315 mm
Dimensions Dimension Sq
0.67 in | 17 mm
Dimensions Nominal Flange Size
2 in
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Standard
High Pressure Series, Code 62 SAE J518 Four Bolt Split Flange Type
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flange Dash Size
-32
Specifications Flow Direction
2-Way
Specifications Handle Codes
offset Steel
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Forged Housing
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Material Split Flange
Without Split Flanges
Specifications Model Code Description
KHM-50F6-1114X-16X-A
Specifications Mounting Type
Flange
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Valve Size
50
