High Pressure 2-Way Ball Valve
High Pressure 2-Way Ball Valve
SKU:ACC-43894c
Top-quality High Pressure 2-Way Ball Valve designed for industrial applications, with up to 7250 psi operating pressure and durable materials for reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

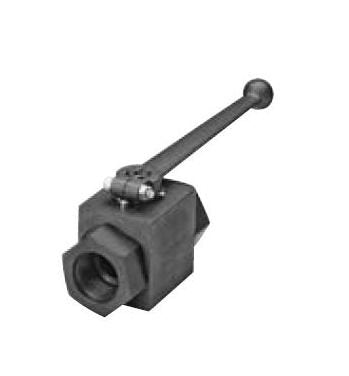

The High Pressure 2-Way Ball Valve is a top-of-the-line solution designed for industrial applications. With a full port, carbon steel or stainless steel housing, and BSP or DIN2353 connections, this valve boasts an operating pressure of up to 7250 psi. Perfect for high-pressure environments, it offers reliable performance in temperatures ranging from 14 ºF to 176 ºF. The chrome-plated ball, zinc-plated spindle, and Nitrile Rubber ball seal ensure durability and efficiency, making it an ideal choice for rigorous settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Connection Size
G1/2
Dimensions Diameter D
15 mm
Dimensions Dimension B
40 mm
Dimensions Dimension D1
G1/2
Dimensions Dimension H
62 mm
Dimensions Dimension H1
20 mm
Dimensions Dimension H2
46 mm
Dimensions Dimension H3
11 mm
Dimensions Dimension I
16 mm
Dimensions Dimension L
83 mm
Dimensions Dimension L1
47 mm
Dimensions Dimension Sw1
12 mm
Dimensions Dimension Sw2
32 mm
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Gender
Female
Specifications Connection Standard
BSP Ports with ISO 228 Threads
Specifications Connection Type
(BSP) Female Thread
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Nitrile Rubber (NBR) (Buna-N)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-G1/2-1112-01X-A
Specifications Operating Pressure Max
7250 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
Handle
Specifications Valve Size
16
Specifications Weight
0.7 kg
