High Pressure 2-Way Ball Valve 3/4-16 UNF
High Pressure 2-Way Ball Valve 3/4-16 UNF
SKU:ACC-8ab3fc
High Pressure 2-Way Ball Valve for max. 7250 psi, with durable Carbon Steel construction & SAE connection. Ideal for temp. range 14°F - 176°F.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Pressure 2-Way Ball Valve 3/4-16 UNF
$129.99
Quantity: 1
Claim Your Seller Account
High Pressure 2-Way Ball Valve 3/4-16 UNF
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Pressure 2-Way Ball Valve features a full port design in Carbon Steel or Stainless Steel, suitable for operating pressures up to 7250 psi. With a temperature range of 14°F to 176°F, this valve is ideal for various settings. Its SAE connection type and ISO 725 threads ensure secure sealing. The valve size 16, with a chrome-plated ball and zinc-plated spindle, offers durability and reliability. Handle maximum temperatures and pressures with ease using this Ball Valve.
Product Specifications
Dimensions Connection Size
3/4-16 UNF
Dimensions Diameter D
0.63 in | 16 mm
Dimensions Dimension A
6.88 in | 175 mm
Dimensions Dimension B
1.50 in | 38 mm
Dimensions Dimension H
2.48 in | 63 mm
Dimensions Dimension H1
1.77 in | 45 mm
Dimensions Dimension H2
0.43 in | 11 mm
Dimensions Dimension H3
0.75 in | 19 mm
Dimensions Dimension H4
2.01 in | 51 mm
Dimensions Dimension L
3.27 in | 83 mm
Dimensions Dimension Sq
0.47 in | 12 mm
Dimensions Tube Size
-8
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA

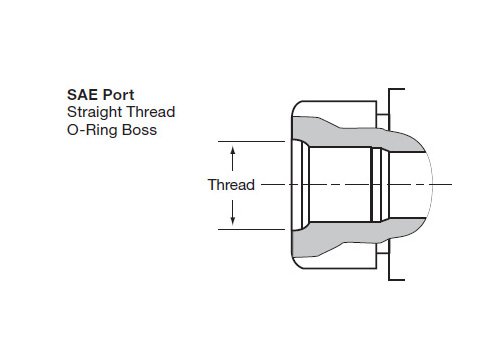

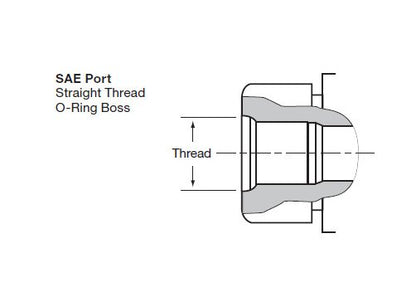

Specifications Connection Standard
SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Connection Type
SAE
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Straight Aluminum
Specifications Housing Surface Plating
Zinc Plated
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyether Ether Ketone (PEEK)
Specifications Material Body
Carbon Steel
Specifications Material Handle
Aluminum
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Fluoroelastomer (FPM) (Standard)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Model Code Description
KHB-16SAE-1184-11X-A
Specifications Nominal Size
16
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
Handle
Specifications Valve Size
16
