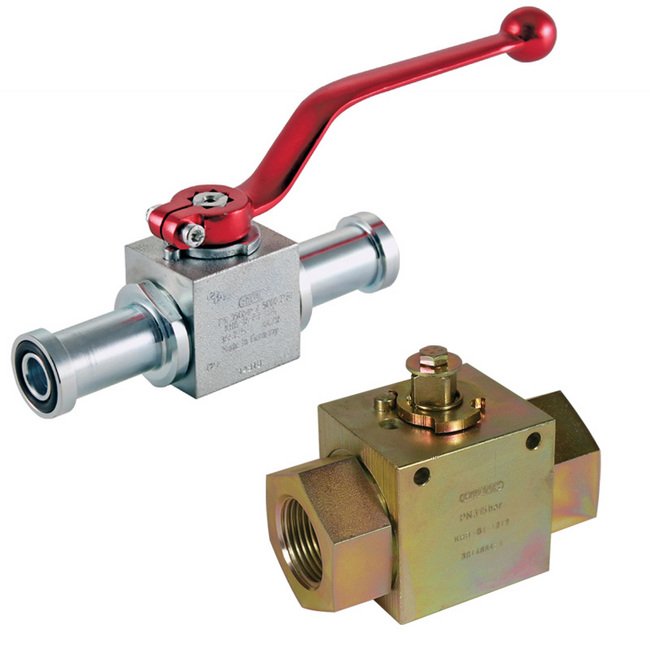

High-Pressure 2-Way Ball Valve
High-Pressure 2-Way Ball Valve
SKU:ACC-b3abc5
Durable high-pressure 2-way ball valve with 6000 psi max pressure, carbon steel construction, and ISO certification.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High-Pressure 2-Way Ball Valve
$129.99
Quantity: 1
Claim Your Seller Account
High-Pressure 2-Way Ball Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Pressure 2-Way Ball Valve is a robust and reliable solution for applications requiring a maximum operating pressure of 6000 psi. Constructed with carbon steel body, spindle, and ball, this ball valve ensures durability and longevity. The Polyacetal ball seal and Nitrile Rubber O-Ring provide secure sealing, while the chrome-plated ball and zinc-plated spindle offer enhanced corrosion resistance. With a temperature range from 14ºF to 176ºF, this valve is versatile and suitable for various industries. Compliant with International Organization for Standardization (ISO) standards, the valve guarantees quality and performance.
Product Specifications
Dimensions Connection Size
G 1/2 (BSP)
Specifications Ball Plating
Chrome Plated
Specifications Bun
EA
Specifications Connection Type
(BSP) Female Thread
Specifications Division
ACCESSORIES
Specifications Flow Direction
2-Way
Specifications Handle Codes
Without Handle
Specifications Housing Type
Block Housing
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material Ball Seal
Polyacetal (Standard)
Specifications Material Body
Carbon Steel
Specifications Material Housing
Carbon Steel
Specifications Material O Ring
Nitrile Rubber (NBR) (Buna-N)
Specifications Material Spindle And Ball
Carbon Steel
Specifications Material Spindle Seal
NBR (Buna N)
Specifications Model Code Description
KH4-G1/2-X-1112-09X
Specifications Note For Maximum Pressure
Dependent upon valve and seal materials selected.
Specifications Operating Pressure Max
6000 psi
Specifications Operating Temperature Max
176 ºF
Specifications Operating Temperature Min
14 ºF
Specifications Product
BALL VALVES
Specifications Product Group Family
BALL VALVES-HIGH PRESSURE (?3000 PSI)
Specifications Spindle Plating
Zinc Plated
Specifications Type
Ball Valve
Specifications Valve Operator
without handle
Specifications Weight
4.3 kg | 9.5 lb
